BST20 Perimeter profile - 2d files - 3d files

PRODUCT DESCRIPTION

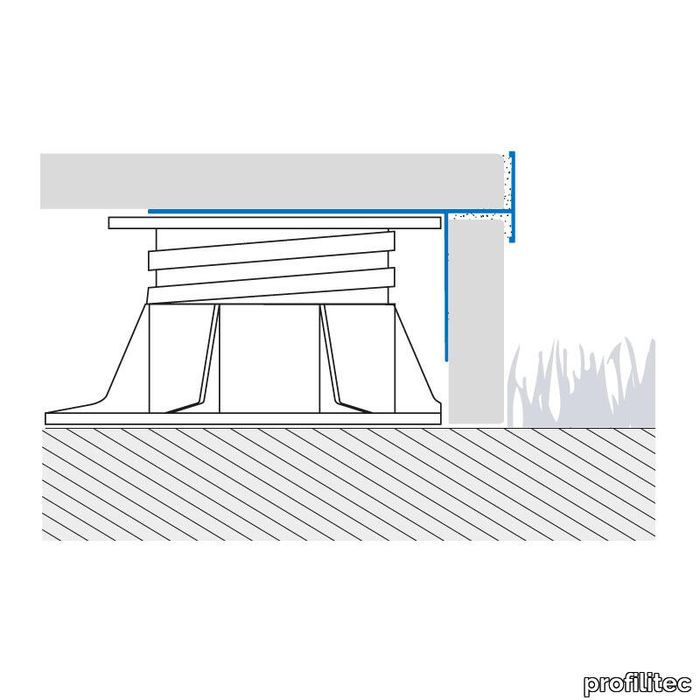

BST20 Perimeter profile Bordertec BST20 is a painted aluminum profile designed to offer an additional solution for delimiting the vertical perimeter edges of a raised floor. It allows the lateral closure of a raised floor, fitting the tile vertically in the appropriate groove of the profile or glued to the vertical end tile using the holes provided.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Bordertec BST20 - Datasheet - Scheda Tecnica_BST20_US.pdf
