SUPL compensator - 2d files - 3d files

PRODUCT DESCRIPTION

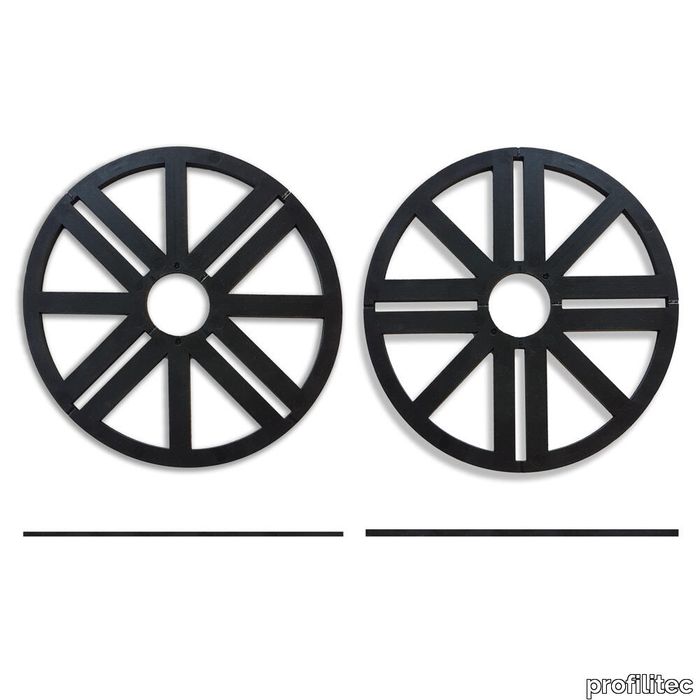

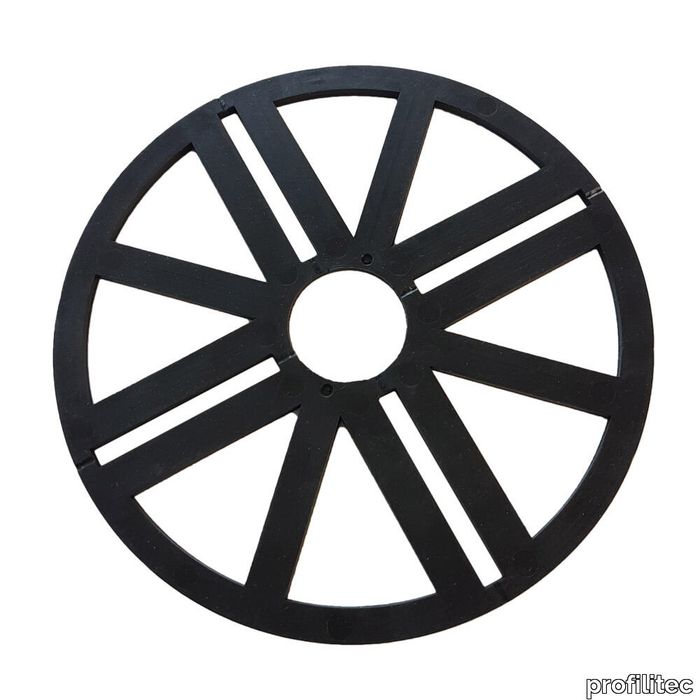

SUPL compensator SUPL, compensator for fixed head raised floor pedestals. They are 3 DB noise reducers, from 52 DB to 49 DB.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]
