SUPA4 – SUPA4 accessory for pavers with 4 mm tabs - 2d files - 3d files

PRODUCT DESCRIPTION

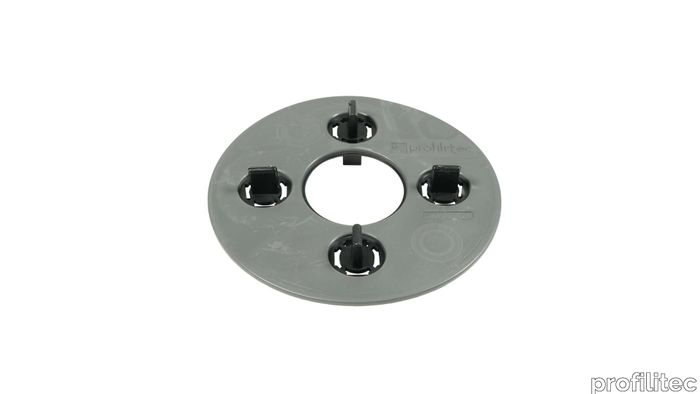

SUPA4 – SUPA4 accessory for pavers with 4 mm tabs The Uptec SUPA4 accessory, with 4 mm tabs (ideal to create 4 mm joints), is made of a two-component material: polypropylene for tabs and rubber on the head to guarantee a noise-reducing and anti-slip characteristic. The tabs can be removed using the SUPAK key depending on the floor configuration. SUPA4 can also be used in combination with the aluminum joist. This accessory is to be used in combination with SUPAL and SUPAS pedestals.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

SUPA4 - Data Sheet - EN_Scheda tecnica SUPA4.pdf
