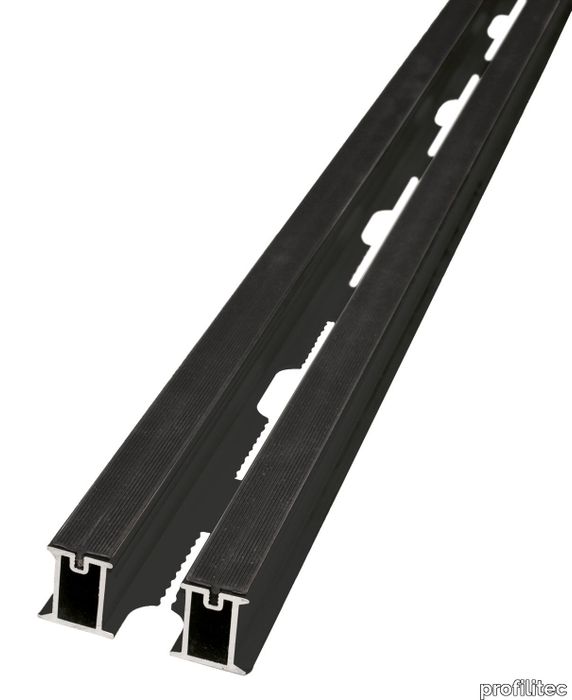

SUPAANG240 aluminium joist for large format tiles - 2d files - 3d files

PRODUCT DESCRIPTION

SUPAANG240 aluminium joist for large format tiles SUPAANG240 offers maximum freedom and flexibility in terms of tile sizes to be used and allows for floors with different laying options and various covering materials. The SUPAANG240 aluminium joist is 2.40 meters long and can be combined with the 4 mm SUPA4 tabs. Openings on the base ensure proper water outflow, a safe and stable attachment to the pedestal head and allow the height to be adjusted with the SUPAK key during and after installation. SUPAANG240 comes with the anti-noise rubber bands already installed to save installers valuable time during installation.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

SUPAANG - Datasheet - Scheda tecnica travetto SUPAANG240_USA-CAok.pdf
