8010 & 8020 pedestals for floating floors installation - 2d files - 3d files

PRODUCT DESCRIPTION

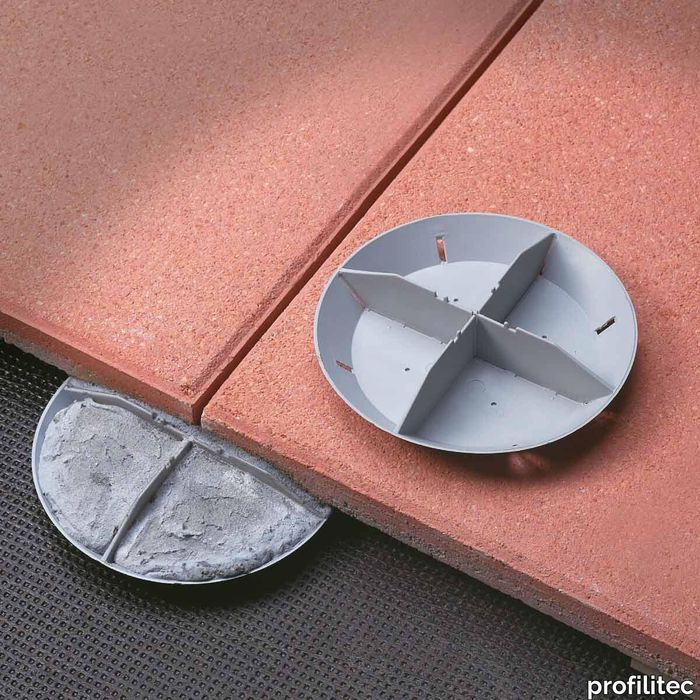

8010 & 8020 pedestals for floating floors installation SET floating floor supports in polypropylene offer good resistance to ice and weathering. Easy to install, the system can compensate elevation differences by simply stacking tie-bases into the base. Placed directly onto the sloping waterproof membrane, they provide an elevated drainage system and allow access for future maintenance. Ideal for balconies, balconies, roof gardens and walkways

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]
