SUPT pedestals for floating floors installation of minimum height - 2d files - 3d files

PRODUCT DESCRIPTION

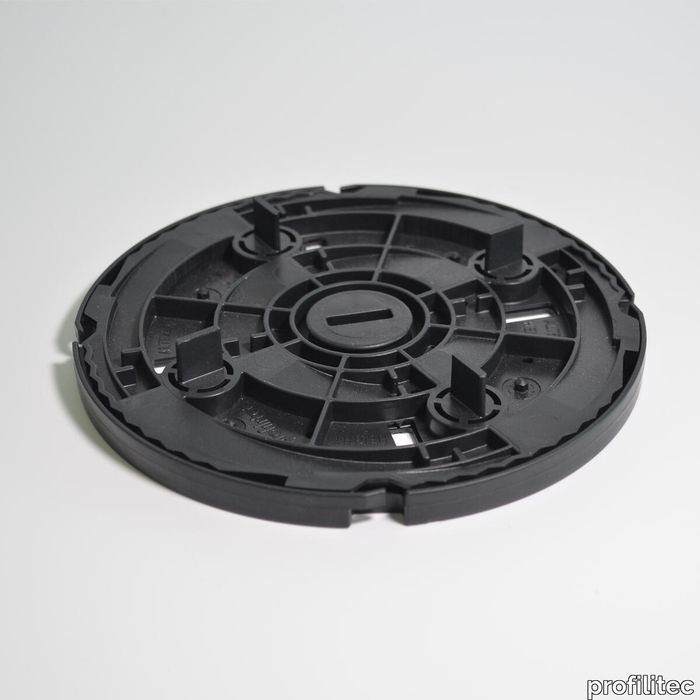

SUPT pedestals for floating floors installation of minimum height SUPT is a support adjustable in height from 10 to 15 mm, with the appropriate adjustment key. By adding the SUPB base, the adjustment can be up to 25 mm (max 3 SUPB 3mm at the time). Available in two variants: SUPT, with 2 mm spacers, SUPT4 with 4 mm spacers.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

SUPT - Data Sheet - Profilitec_SchedaTecnica-SUPT_EN.pdf
