SUPAR – SUPAR stackable ring - 2d files - 3d files

PRODUCT DESCRIPTION

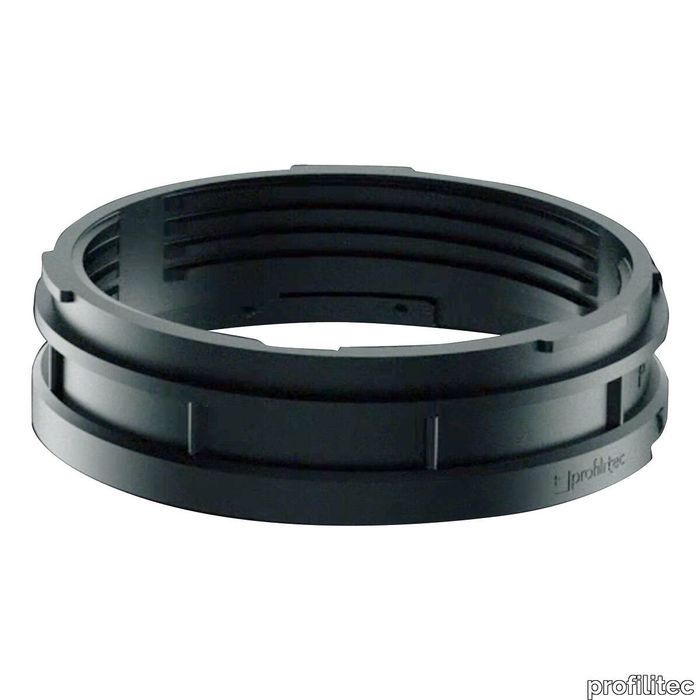

SUPAR – SUPAR stackable ring Uptec SUPAR is a stackable ring to be used in combination with the standard supports, SUPAS and SUPASFX from 58 mm up. Each extension ring is 30 mm. SUPAR has been designed to be easily assembled, thanks to the symbols placed both on the ring and on the base of the support (open padlock / closed padlock). It can be used individually or as a combination of multiple SUPAR until it reaches the desired height.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Uptec Brochure - Book Uptec 2023 US-compresso.pdf
