SUPAL – Low pedestal for raised floors - 2d files - 3d files

PRODUCT DESCRIPTION

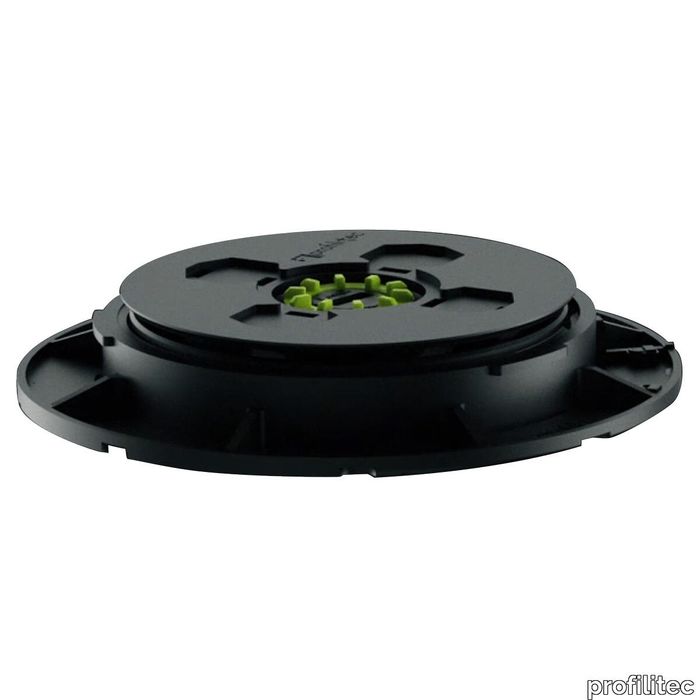

SUPAL – Low pedestal for raised floors The Uptec SUPAL support is adjustable in height from to 28 to 43 mm, with a base of 190 mm in diameter and a head of 130 mm. The support can be both self-leveling and fixed: by rotating the pre-included mechanism, it’s possible to switch from one mode to another in few seconds, without any additional accessory. When in self-leveling mode, the head can compensate slopes up to 5%. On the head it is possible to apply the accessories for standard installations (2mm spacers or 4mm spacers), the head for the wooden beam or to add the aluminium joist (on the head with 4mm spacers). Holes have been made on the base to allow the water to flow out, and on the lower side 4 pre-cut lines to easily cut the pedestals when you come to corners or perimeters.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Uptec Brochure - Book Uptec 2023 US-compresso.pdf
