Plastic "cross" tie-bases to be used for floors and walls - 2d files - 3d files

PRODUCT DESCRIPTION

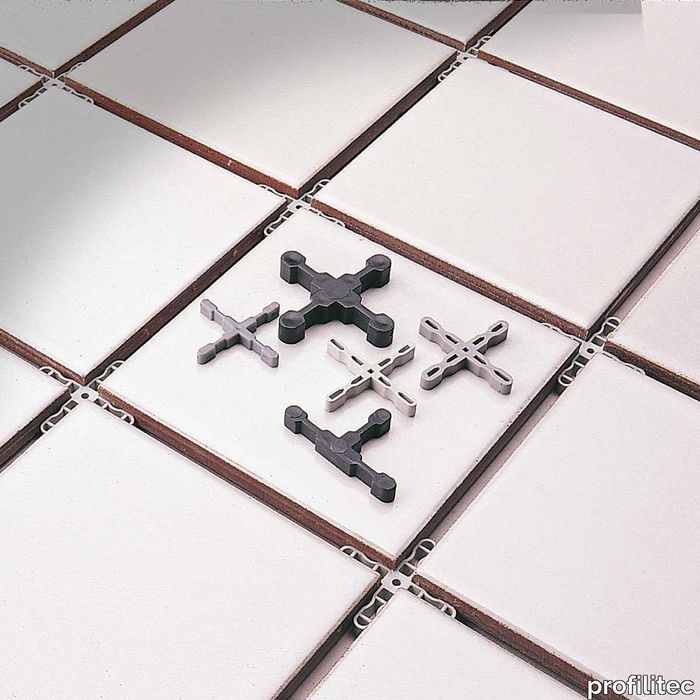

Plastic "cross" tie-bases to be used for floors and walls Cross tie-bases in plastic, perforated, for laying floors and walls with calibrated and uniform grouting. Made of chemical resistant material. Available in all the different thicknesses required by the joints. Thanks to their anti-floating shape, they remain in the correct position during installation (from DIC 30 to DIC 100). They are supplied in packs of 500 pieces inserted in a display "dispenser" container.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

DIC DIT DIS - Datasheet - Profilitec_Catalogue-page_DIC-DIT-DIS_NA.pdf
