RE DIY profiles rectangular shape - 2d files - 3d files

PRODUCT DESCRIPTION

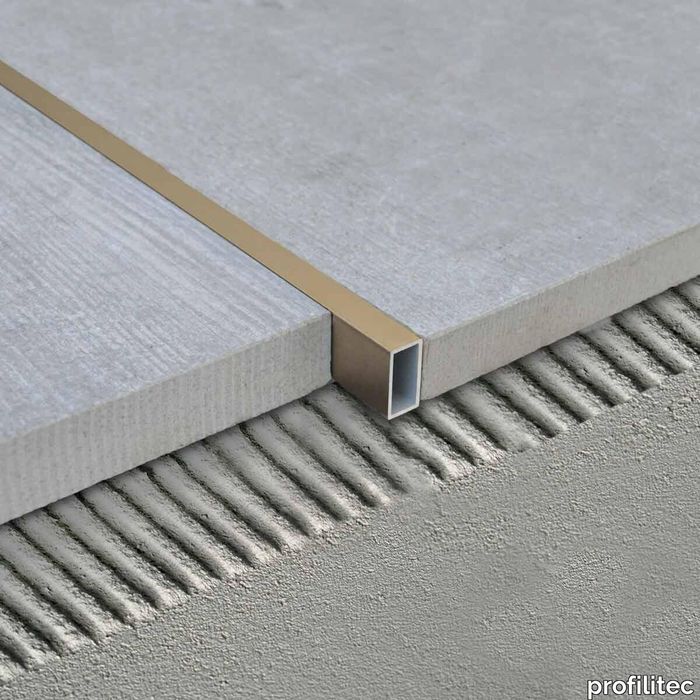

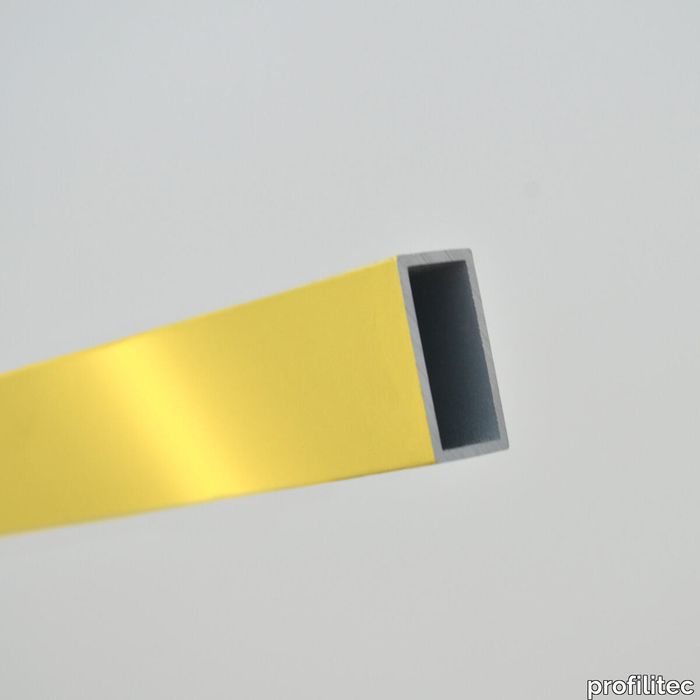

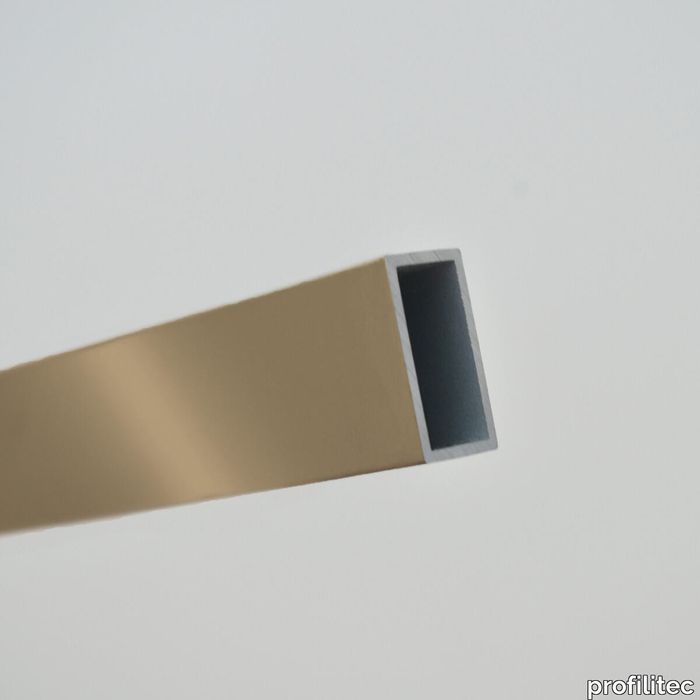

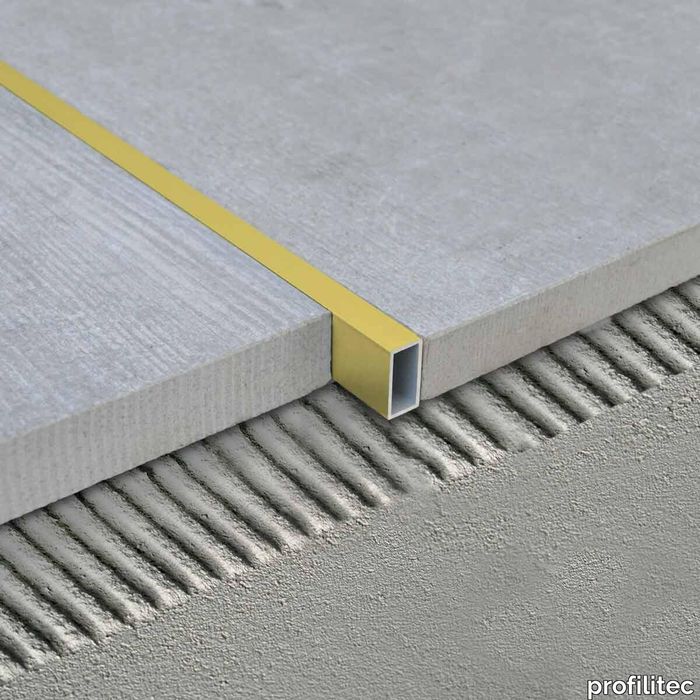

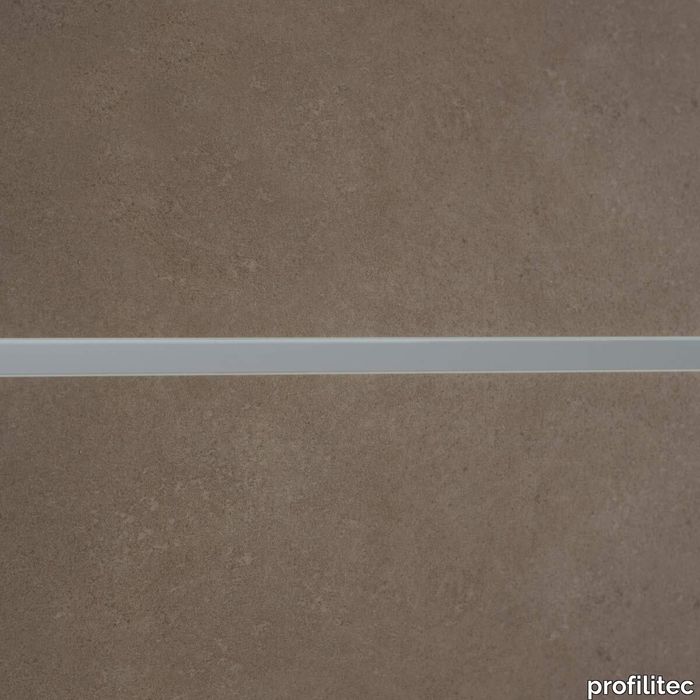

RE DIY profiles rectangular shape DIY RE PROFILES are a range of 2 meter long rectangular tube profiles in anodised aluminium which are used as finishing profiles after installation.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]
