PT DIY profiles T shape - 2d files - 3d files

TRIMTEC TR: multipurpose profiles in different materials

profilitec > Accessories

TRIMTEC TR: multipurpose profiles in different materials TRIMTEC TR is a complete range of brass, aluminium and stainless steel trim profiles designed for fast and efficient installation of any flooring type, regardless of size and thickness. TRIMTEC TR is available in various heights from 2 to 30 mm, matching different tile thicknesses. In the aluminium and brass versions, a dovetail groove maximizes the grout grip and edge protection for both vertical and horizontal tile laying. TRIMTEC TR profiles are conceived for tile laying, but can also be used with other types of flooring such as stone, wood and industrial resin floors. TRIMTEC TR profiles are mainly used as transition trims between two types of flooring (for example between tiling and moquetteing) and as expansion joints when two lengths are laid side by side. They can also be used as trimming for ceramic skirtings and as edge protection for any floor thickness. In some cases the profiles may be used as entrance mat framing. TRIMTEC TR Curveline: the bendable version of the TR TRIMTEC TR series is also available with a specially-cut flange that allows shaping for curved edges and inlays. To order: add the letter D to the product code. TRIMTEC TR how to install 1) Choose the trim size according to the tile thickness. The trim should be 0.5+/-1mm lower than the tile, therefore not exceeding the height of the tile. 2) Apply tile adhesive. 3) Cut the profile to required length, leaving extra space for linear expansion. The perforated flange of the trim is then firmly embedded into the adhesive and aligned. 4) Trowel an additional layer of adhesive over the perforations in the profile and in the dovetail groove of the vertical section. 5) Leave a tiny gap of approximately 0.5+/-2mm between the trim and the tile for final grouting.

TRIMTEC SR Edging perimeter profiles for ceramic floors

profilitec > Accessories

TRIMTEC SR Edging perimeter profiles for ceramic floors TRIMTEC SR is especially recommended for finishing the perimeter of ceramic floors, particularly when they abut a vertical surface. It is also used as stair nosing and trimming in balconies and exit ways. TRIMTEC SR profiles have an extended vertical edge to cover and protect border surfaces and prevent future cracking. Its unique sectional design allows the use of two different floor thicknesses with the same reversible profile. The aluminium section is designed with vertical dovetail anchoring. TRIMTEC SR CURVELINE: bendable profiles TRIMTEC SR series is also available with a specially-cut flange that allows shaping for curved edges and inlays. To order: add the letter D to the product code.

BORDERTEC SBR Edging profiles for balconies and patios

profilitec > Accessories

BORDERTEC SBR Edging profiles for balconies and patios The BORDERTEC BSR is recommended for contouring marble and stone balconies and sidewalks. Its unique sectional design allows the use of two different floor thicknesses with the same reversible profile. BORDERTEC BSR in size BSR 20/* can be used with PROFILITEC floating floor support systems. BORDERTEC BSR contains all necessary elements for state-of-the-art installation.

ROUNDJOLLY profiles for thin floors

profilitec > Accessories

ROUNDJOLLY profiles for thin floors ROUNDJOLLY profiles join floor types of different thicknesses, finishing and protecting the tile edge. Available in aluminium and stainless steel, this profile is ideal for renovations with thin tiles.

SQUAREJOLLY SJ: square shape trims

profilitec > Accessories

SQUAREJOLLY SJ: square shape trims Squarejolly SJ is a multipurpose aluminium profile used in laying adhesive ceramic floor and wall coverings. Its uniquely symmetrical shape lends itself to endless detailing possibilities. In the technical specs, H corresponds to the tile thickness and B = H + 1mm corresponds to the visible width of the profile. In the aluminium version, a patented internal cavity with a dovetail groove maximizes vertical grout grip and edge protection. The sectional design of the SQUAREJOLLY SJ profile provides a completely leveled surface, making it resistant to vertical loads and perfectly suitable for flooring applications. How SJ models can be used SQUAREJOLLY SJ is a multipurpose profile with a wide range of applications: • Leveled flooring intersections • Decorative accent bands • Wall tile contouring • Entrance mat framing • skirting finishing and edging • Stair nosing

COVERTEC EP: Transition trims for floors with the same height

profilitec > Accessories

COVERTEC EP: Transition trims for floors with the same height The COVERTEC EP profile joins two adjacent flooring surfaces (for example: concrete/ceramic tile, wood/ceramic tile and other resin or vinyl floor combinations). The overlapping section allows differential movement of the flooring, hides edging imperfections and prevents chipping and cracking. Available in aluminium and brass with patented dovetail anchoring.

COVERTEC SP: T shape trims for floors with the same height

profilitec > Accessories

COVERTEC SP: T shape trims for floors with the same height COVERTEC SP is a profile designed to join two adjacent existing floors at the same height but it can cover imperfections in cutting or slight variations of height to be found on a tiled floor joining to a wooden one for example. Thanks to its shape, available in 3 different widths, this profile helps floor coverings to maintain the minimum distance thus acting also as a dilatation joint.

STRIPTEC ST: Transition trims for floors with different heights (max 5mm)

profilitec > Accessories

STRIPTEC ST: Transition trims for floors with different heights (max 5mm) STRIPTEC ST profiles are designed to join adjoining floors of equal or different type and thickness. The rounded shape of this profile covers edge imperfections and allows a slight rotation, compensating for elevation differences of up to 5mm. It can also be used as a termination profile, given a floor thickness of up to 5mm. Available in two versions: self-adhesive and screw-on. STRIPTEC how to install Installation of self adhesive version: 1) Make sure the base is solid, flat, level, clean and dry. 2) Cut the profile to the desired length and remove adhesive backing. 3) Press uniformly downwards on to the profile to apply. Do not hammer. Installation of the pre-drilled version: 1) Cut the profile to the desired length and mark the position of the pre-drilled holes. 2) Fasten with flathead screws.

STRIPTEC ST38: Transition trims for floors with the same heights

profilitec > Accessories

STRIPTEC ST38: Transition trims for floors with the same heights ST38 aluminium profiles (available in the adhesive or perforated version) for transition or threshold cover with knurled surface. Slightly rounded shape. The shaped edge allows perfect contact with the floor. Used to minimize installation defects and creating expansion joints.

STRIPTEC STP: Transition trims for floors with the same heights

profilitec > Accessories

STRIPTEC STP: Transition trims for floors with the same heights STP Brass profiles (available in the adhesive or perforated version) for connection or threshold cover with smooth brass surface. The shaped edge allows perfect contact with the floor. Suitable for eliminating laying defects and creating expansion joints.

STRIPTEC STB: Transition trims for floors with the same heights

profilitec > Accessories

STRIPTEC STB: Transition trims for floors with the same heights STB profiles in brass or aluminium (available in the adhesive or perforated version) for connection or threshold cover with smooth brass and aluminium grooves. The shaped edge allows perfect contact with the floor. Suitable for eliminating laying defects and creating expansion joints.

MULTICLIP CLG Transition trims for all kind of floors

profilitec > Accessories

MULTICLIP CLG Transition trims for all kind of floors The innovative, patented MULTICLIP® CLG 370 profiles has a tilting head to adjust minor height differences up to 3mm. MULTICLIP CLG allows flooring expansion and contraction making it the perfect transition profile in between different flooring materials. You can easily increase the height by stacking up to 3 plastic rails one on top of the other. A 16mm internal cavity acts as an expansion joint, allowing 5mm of differential movement. Typically, laminate wood flooring expands about 5mm per plank due to humidity.

MULTIFIIX CLG Transitions trims for floors with the same height

profilitec > Accessories

MULTIFIIX CLG Transitions trims for floors with the same height Patented transition profile for floors at the same level, slightly rounded in anodised aluminium finish and with high resistance wood effect coating. This article has been conceived for a purely domestic environment and for Do-it-yourself use, to be fixed primarily with the nylon "MULTIFIX" plugs. MULTIFIX how to install 1. Forare con punta da 6 mm 2. Inserire gli appositi tasselli 3. Allineare i tasselli 4. Martellare in modo uniforme

MULTICOVER CLG - Transition trims for floors with the same height

profilitec > Accessories

MULTICOVER CLG - Transition trims for floors with the same height CLG transition profiles in anodised aluminium finish and with high resistance wood effect coating. The elements that make up the MULTICOVER® system fit perfectly thanks to the plastic rail and do not move once clipped together. The profiles are also available in a perforated version, for fixing with screws and plugs or self-adhesive, equipped with a particular elastomer which allows an easy and quick application. For installation, simply remove the protective paper from the adhesive and apply the profile, cut to the required length, with uniform pressure. For a good seal, the support surface must be smooth, clean and dry

WOODTEC LG edging trims for wooden floors

profilitec > Accessories

WOODTEC LG edging trims for wooden floors WOODTEC LG profiles are specifically designed to join two adjoining floating wood floors. The size and shape of the profile section allows for differential movement typical of wood flooring. Its smooth top surface fits under doorways making it perfectly suitable for thresholds.

CARPETEC MG transition trims for carpet floors

profilitec > Accessories

CARPETEC MG transition trims for carpet floors Designed for carpet flooring, CARPETEC MG profiles are composed of two elements: a base track onto which the carpet is laid, and an interlocking, grooved top piece that snaps shut and compresses the carpeting.

CARPETEC MP Transition / edging trims for carpet floors

profilitec > Accessories

CARPETEC MP Transition / edging trims for carpet floors The multipurpose, grooved moquetteEC MP profiles designed to compress moquette flooring at different elevations. They may be used to join two types of moquetteing or as edge profiles.

STC Profile to cover electric cables

profilitec > Accessories

STC Profile to cover electric cables Profile used to cover electric cables. Available in the adhesive version.

CUBETEC CU: Transition trims for floors with the same height

profilitec > Accessories

CUBETEC CU: Transition trims for floors with the same height CUBETEC CU is a decorative profile that allows you to create a transition between floors of the same height or as a wall transition. The profile is characterized by the constancy of the visible dimension (8 mm) which is independent of the height of the profile. Available in polished AISI 304 stainless steel and satin steel.

CUBETEC FI: Transition trims for floors with the same height

profilitec > Accessories

CUBETEC FI: Transition trims for floors with the same height CUBETEC FI is a linear and decorative finishing element which provides long-lasting and heavy-duty tile edge protection. The CUBETEC FI profile is a decorative joint between different flooring types, trimming for ceramic tile and suitable for welcome mat framing. Two profile widths are available in polished stainless steel AISI 304.

VARIOTEC DS Transition trims to be used after flooring installation

profilitec > Accessories

VARIOTEC DS Transition trims to be used after flooring installation VARIOTEC DS is a stainless steel or brass profile for floors with differences in height from 7 to 12 mm. Supplied with adhesive on the lower side for a quick and long-lasting installation. Fitting to combine ceramic or parquet floors with lower thickness materials, such as moquettes or vinyl floors. Adhesives: they are supplied with a particular elastomer which allows an easy and quick application. For installation, simply remove the protective film from the adhesive and apply the profile, cut to the required length, with uniform pressure. For a good seal, the support surface must be smooth, clean and dry.

LINETEC PR Transition trims

profilitec > Accessories

LINETEC PR Transition trims Extruded brass transition profile. Perimeter profile for wooden floors or ceramic with thickness 10 mm. They allow to solve quickly and with an excellent aesthetic result the most frequent junction situations between floors of different nature, where an appropriate connection system has not been foreseen at the time of installation.

LINETEC PQ Transition trims for floors with the same height

profilitec > Accessories

LINETEC PQ Transition trims for floors with the same height Profiles in extruded brass or stainless steel for transition between floors already installed. It fits between floors of 10 mm thick. They allow to solve quickly and with an excellent aesthetic result the most frequent transition situations between floors of different nature, where an appropriate transition system has not been foreseen at the time of installation.

LINETEC PU Transition trims for floors with the same height

profilitec > Accessories

LINETEC PU Transition trims for floors with the same height Extruded U-shaped brass profile for transition between floors already installed of 10 mm thick. It solves quickly and with an excellent aesthetic result the most frequent transition situations between floors of different nature, where an appropriate connection system has not been foreseen at the time of installation.

MULTICPLIP CLP perimetral trims that allows the flooring expansion / contraction

profilitec > Accessories

MULTICPLIP CLP perimetral trims that allows the flooring expansion / contraction The patented MULTICLIP® CLP 270 aluminium perimeter profile allows floor edge finishing without skirtings. A 16mm internal cavity allows 3/16’’ (5mm) of differential movement. This profile is also suitable along sliding door tracks and as entrance mat framing.

WOODTEC LT edging trims for wooden floors

profilitec > Accessories

WOODTEC LT edging trims for wooden floors The WOODTEC LT profiles are specifically designed for finishing the perimeter of floating wood floors, particularly when they transition to another floor type at the same elevation or abut a vertical surface. While acting as an expansion joint, they also allow floor edge finishing without skirtings. This profile is also suitable along sliding door tracks and as entrance mat framing. Installed with flathead screws.

CARPETEC MD edging tims for carpet floors

profilitec > Accessories

CARPETEC MD edging tims for carpet floors Perimeter profiles in anodised aluminium for flexible floors such as moquettes and coconut mats. The profiles, by pressing them, close, locking the edge, covering the cutting defects and preserving the edge. Available in the perforated and with hooks version to allow a better grip of the moquette.

CARPETEC MS edging tims for carpet floors

profilitec > Accessories

CARPETEC MS edging tims for carpet floors Rounded perimeter profile in anodised aluminium or brass for flexible floors such as moquetteing and coconut mats. The profiles, by pressing them, close, locking the coating in a lasting way, covering the cutting defects and preserving the edge. The profile is serrated both in the rounded part on the inside and on the surface to allow a better grip of the moquette.

ENTRYTEC BU Profiles for entrance mattings

profilitec > Accessories

ENTRYTEC BU Profiles for entrance mattings Reversible profile to create perimeters suitable for containing coconut doormats, moquettes or technical aluminium doormats. The profile, thanks to the particular shape, allows to obtain the two most common doormat thicknesses of 18 and 23 mm. The laying of the frame, which can be easily assembled with the brackets supplied, must be prepared at a height before laying the adjacent floor. The profile can also be laid with the help of modular and sliding fixing brackets inside the slots.

ROUNDTEC RD Transition trims for floors with different heights

profilitec > Accessories

ROUNDTEC RD Transition trims for floors with different heights The ROUNDTEC profile is mainly used in transitioning floor types of different thicknesses, for example from ceramic tile to thin linoleum. Its rounded section provides a smooth level change of 3mm, making it suitable between two floor types or as an end profile. ROUNDTEC can even be used as stair nosing or edging for tile countertops. Available in brass with patented dovetail anchoring.

ZEROTEC ZRM Ramp trims for floors with different heights

profilitec > Accessories

ZEROTEC ZRM Ramp trims for floors with different heights ZEROTEC ZRM profile is the ideal solution for joining two floors at different levels, between a ceramic covering and one in moquette moquetteing for instance. This trim allows a 5 mm progressive sloping difference to the next floor to match thus making safer when treading over the connecting floors. The ramp inclination has been conceived for vehicle and wheel carts transit.

ZEROTEC ZR Transition trims for floors with different heights and of different materials

profilitec > Accessories

ZEROTEC ZR Transition trims for floors with different heights and of different materials ZEROTEC ZR allows the installer to perfectly match different floor levels when laying ceramic tile or wood flooring over an existing floor. Because of the slope, ZEROTEC profiles are ideal in passage areas for hand trolley and cars, while providing edge protection resistant to vertical loads. The brass version is recommended for industrial applications in garages and shopping centers. Available in aluminium and brass with patented vertical dovetail anchoring. ZEROTEC ZR Curveline: bendable version of the Zerotec Some ZEROTEC ZR profiles are also available with a specially-cut flange that allows shaping for curved edges and inlays. To order: add the letter D to the product code.

Zerotec ZRN60 Transition trims for floors with different heights and of different materials

profilitec > Accessories

Zerotec ZRN60 Transition trims for floors with different heights and of different materials Zerotec ZRN60 has been designed to optimize transitions between different flooring materials, situation that often occurs in public environments such as hotels and restaurants. Its delicate line and its defined inclination allow to optimize the transition between different heights: from 8, 10 or 12.5 mm thick tiles to another 6 mm thick floor, giving a modern and elegant touch to the environment. The ramp length is 8.5 mm fixed for all heights. This particular design protects and hides the portion of the underlying coating (6 mm thick) from impacts and mechanical hits, preventing its possible breakage.

Zerotec ZR60 Transition trims for floors with different heights and of different materials

profilitec > Accessories

Zerotec ZR60 Transition trims for floors with different heights and of different materials Zerotec ZR60 has been designed to optimize transitions between different flooring materials; it can be typically found in public spaces, like hotels and restaurants. Its delicate line and gradual inclination allows a smooth transition between different floor levels: from 8 mm, 10 mm and 12.5 mm tile to an adjacent floor covering with a thickness of 6 mm, excellent for modern and elegant interior detailing. The profile’s unique shape hides and protects the edge of the flooring below (6 mm thickness) from mechanical impact, hiding imperfections while preventing damage caused by passage and use.

Profili RAMPTEC ZRR Ramp trims for floors with different heights

profilitec > Accessories

Profili RAMPTEC ZRR Ramp trims for floors with different heights The 20° slope of the anodised aluminium RAMPTEC ZRR profile provides a safe and progressive transition between two different floor levels. The vertical edge has a dovetailed internal cavity that maximizes grout and adhesive grip on load bearing points.

LEVELTEC RPR Transition trims to be used after flooring installation

profilitec > Accessories

LEVELTEC RPR Transition trims to be used after flooring installation LEVELTEC RPR is a model with the function of perimeter or connection profile between floors of different nature and thickness. These profiles also cover any chipping of the ceramic edge and imperfect cuts of wooden floors or moquetteing. LEVELTEC RPR is able to compensate for differences of 8 ÷ 14 mm. The profile is normally supplied with an adhesive with high sealing characteristics or without an adhesive.

LEVELTEC RP Transition trims to be used after flooring installation

profilitec > Accessories

LEVELTEC RP Transition trims to be used after flooring installation LEVELTEC RP is a series of profiles with a terminal or connecting function between floors of different nature and thickness. These profiles also cover any chipping of the ceramic edge and imperfect cuts of wood or carpet floors. The LEVELTEC RP series consists of profiles with heights between 4.5 ÷ 12.5 mm, capable of compensating for height differences of 3 ÷ 14 mm. The profile is normally supplied with adhesive of high sealing properties. They are also available in a drilled version for fixing with screws and dowels. LEVELTEC RP: transition profile in different dimensions Smooth and grooved LEVELTEC profiles in varying widths and heights transition floors of different elevations. Their sectional thickness makes them especially suitable for high traffic areas and the end detailing allows frictionless contact between the profile and floor. LEVELTEC RP how to install Installation of self-adhesive version: 1) Make sure the base is solid, flat, level, clean, and dry. 2) Cut the profile to the desired length and remove adhesive backing. 3) Press uniformly downwards on to the profile to apply. Do not hammer. Installation of pre-drilled version: 1) Cut the profile to the desired length and mark the position of the pre-drilled holes. 2) Fasten with flathead screws.

VARIOTEC DC Adhesive flooring profiles

profilitec > Accessories

VARIOTEC DC Adhesive flooring profiles VARIOTEC DC profiles’ innovative design elegantly rotates and adapts to match different floor elevations. By simply rotating its shape, this profile can adapt to floor thicknesses ranging from 7 to 14mm. Use our adhesive for on-site installation.

VARIOTEC DK Transition trims to be used after flooring installation between 7mm and 16mm (9/32" to 5/8")

profilitec > Accessories

VARIOTEC DK Transition trims to be used after flooring installation between 7mm and 16mm (9/32" to 5/8") Especially conceived for residential and light commercial use, VARIOTEC DK profiles are available in a wide range of decorative finishes. This profile series is designed to join different floor types with an elevation difference ranging from 7 to 16mm. VARIOTEC DK profiles are self-adhesive - simply cut the profile to the desired length, remove the adhesive backing and press uniformly downwards on to the profile to install. Always make sure the base is solid, flat, level, clean and dry.

VARIOTEC DR Transition trims to be used after flooring installation

profilitec > Accessories

VARIOTEC DR Transition trims to be used after flooring installation VARIOTEC DR are stainless steel or brass profiles used as a transition between already installed floors of different nature and level. Self-adhesive: they are supplied with a particular elastomer which allows an easy and quick application. For installation, simply remove the protective film from the adhesive and apply the profile, cut to the required length, with uniform pressure. For a good seal, the support surface must be smooth, clean and dry.

PT DIY profiles T shape

profilitec > Accessories

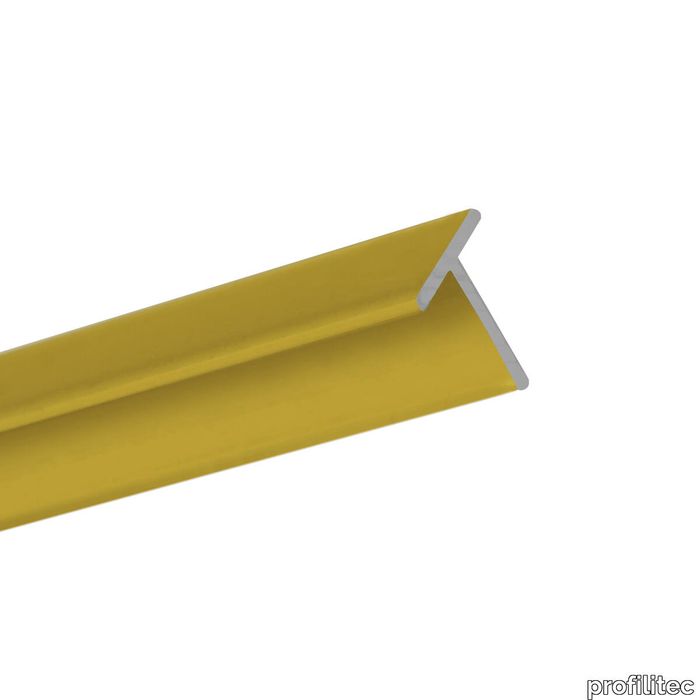

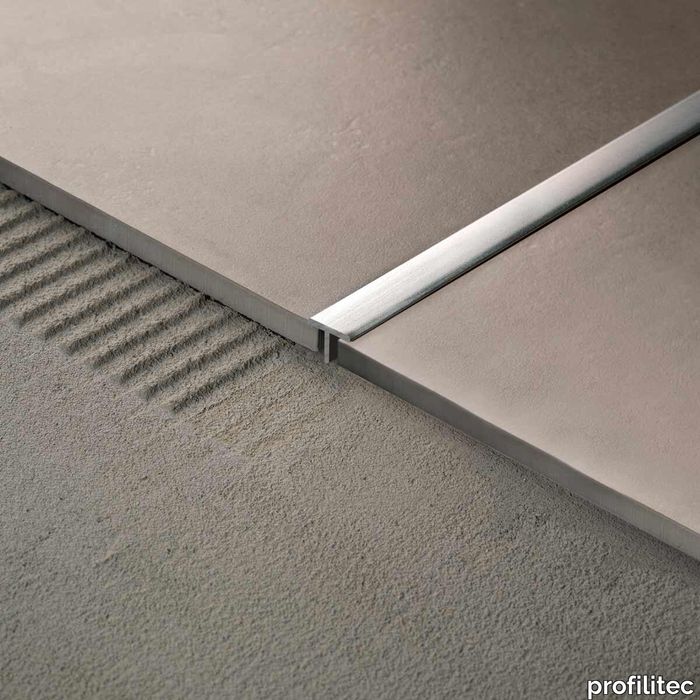

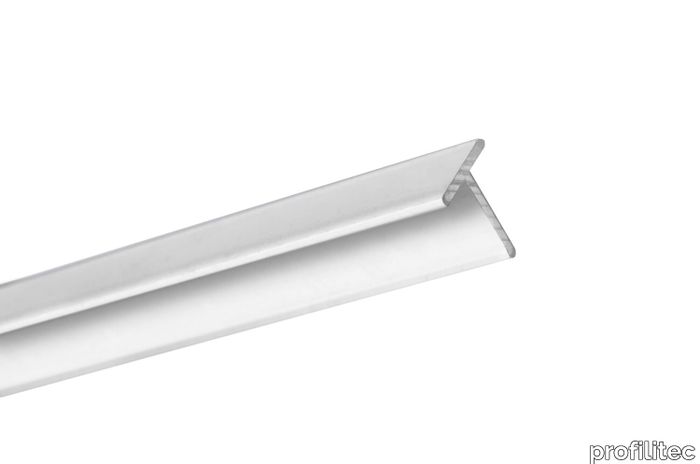

PT DIY profiles T shape DIY PT PROFILES are a range of 2m long "T" profiles in anodised aluminium which are used as finishing profiles after installation.
