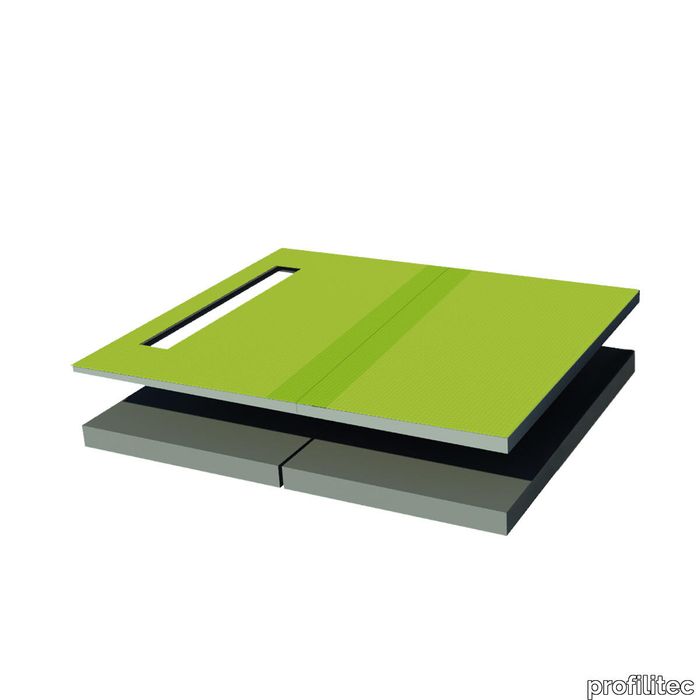

Showertec Linear TRAY-R, pre-slope shower tray with riser - 2d files - 3d files

PRODUCT DESCRIPTION

Showertec Linear TRAY-R, pre-slope shower tray with riser Showertec STL - TRAY-R are a family of pre-sloped shower trays with riser, compatible with Showertec Linear STL BS and Showertec Linear STL BV and STL BC combined with a riser (height from 68 to 90 mm). They are made of waterproof material and thanks to the reinforcement grid and the honeycomb surface finish they are very resistant and allow a solid bond between the cement glue and the tile. Available in 91/112 cm and 132/112 cm versions, they can be combined with extensions 91/56 cm and 132/56 cm.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

BOOK STL - Profilitec_BOOK_ShowertecLinear_US.pdf
