STL-TRAY Pre-sloped shower tray for Showertec Linear system - 2d files - 3d files

PRODUCT DESCRIPTION

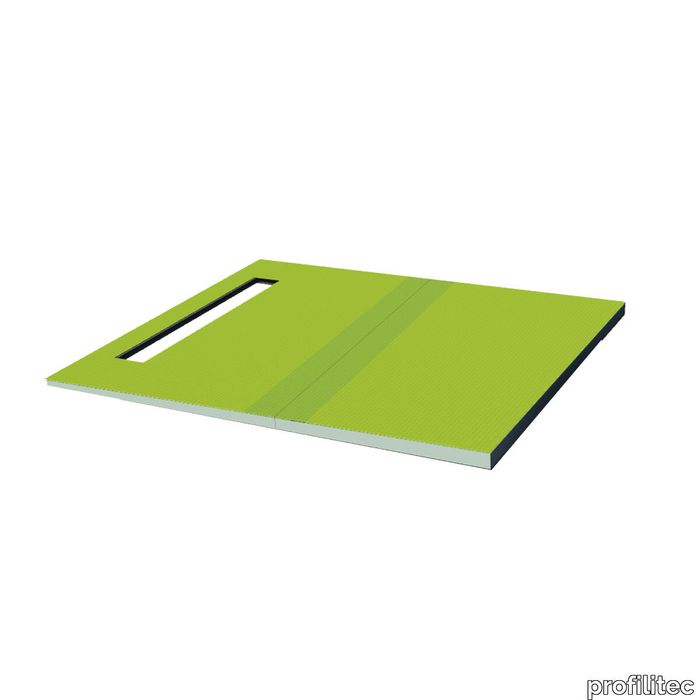

STL-TRAY Pre-sloped shower tray for Showertec Linear system Showertec STL - TRAY are a family of pre-sloped shower trays compatible with Showertec linear STL BS and Showertec linear STL BV and STL BC (height from 15 to 37 mm. They are made of waterproof material and thanks to the reinforcement grid and the honeycomb surface finish they are very resistant and allow a solid bond between the cement glue and the tile. Available in 91/112 cm and 132/112 cm versions, they can be combined with 91/56 cm and 132/56 cm extensions and also in combination with the 53 mm raised panel to form the STL-TRAY-R panel.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

BOOK STL - Profilitec_BOOK_ShowertecLinear_US.pdf
