STC-TRAY Presloped shower tray for Showertec system - 2d files - 3d files

PRODUCT DESCRIPTION

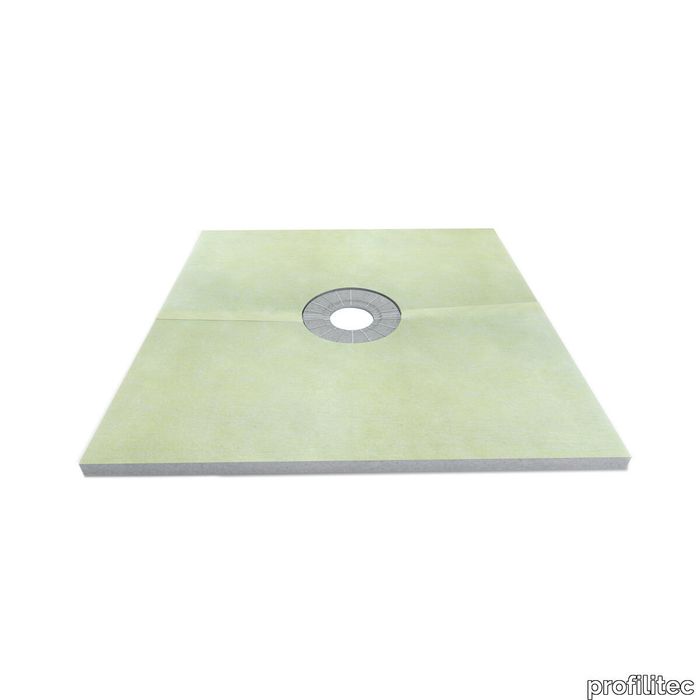

STC-TRAY Presloped shower tray for Showertec system Showertec STC - TRAY are a family of pre-licensed trays compatible with the showertec central drain STC-SD with ABS and PVC flange and vertical discharge. They are made of EPS to which a waterproofing membrane is applied which, combined with the corners, strips and Foiltec membrane, make the shower impermeable to water and steam. Available in 91/91 cm, 122/122 cm, 81/152 cm and 183/183 cm versions, they can be combined with vertical drain systems in PVC and ABS. In the range there is also STC-CURB to create steps that do not allow water to escape 91 and 122 cm version.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Showertec central - Brochure - Brochure_Showertec_ENFRES_PAGINE_SINGOLE.pdf
