Shower KIT with vertical drain - DRAIN KIT Showertec - 2d files - 3d files

PRODUCT DESCRIPTION

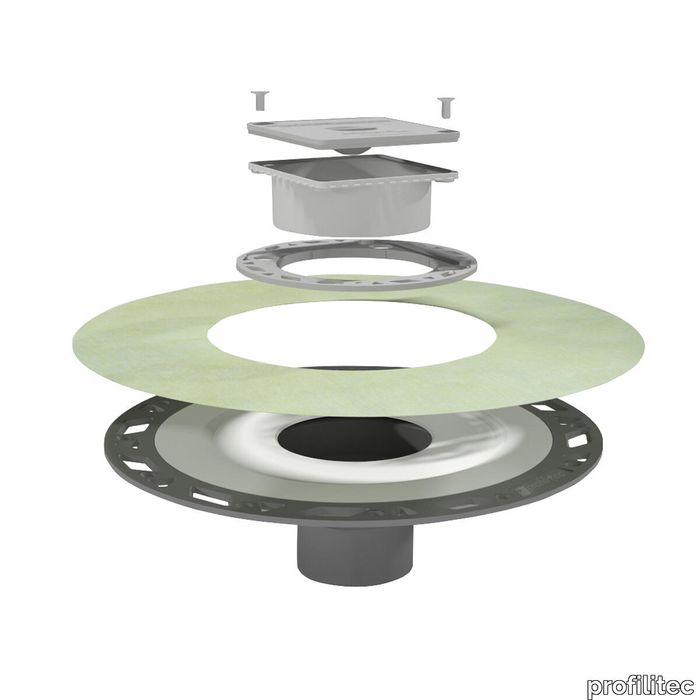

Shower KIT with vertical drain - DRAIN KIT Showertec Showertec STC - DRAIN KIT is a shower kit for vertical drains that contains the flange with vertical drain (ABS or PVC), combined with a waterproof membrane ring to connect the flange with the shower tray, the grid support system (plastic), the grid (stainless steel or aluminium) and the waterproofing membrane corners. The system combined with the STC shower trays allows you to create shower systems with point drainage and central drain.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]
