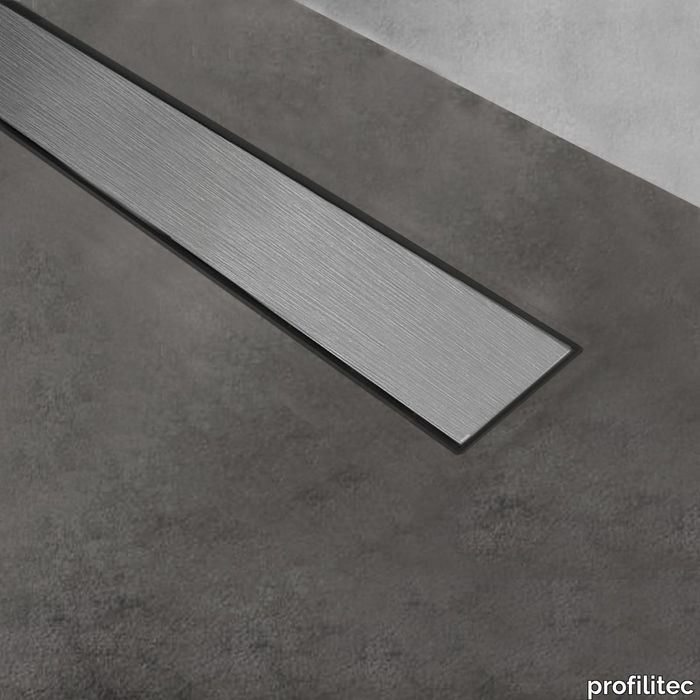

Cover grid for linear channels of the Showertec Linear system - 2d files - 3d files

PRODUCT DESCRIPTION

Cover grid for linear channels of the Showertec Linear system Showertec STL - C are a family of metal covers, made of highly resistant stainless steel or aluminium (Alu +). The metal cover is available in the sizes 600-700-800-900-1000-1200 mm. The cover is integral with an aluminium support and has adjustable feet that allow it to be adjusted in height from 7 to 18 mm. The plastic material of the feet that rest on the channel attenuate the acoustic transmission and resting on the islands on the channel, allow an easy flow of water, guaranteeing at the same time the stability of the system during pedestrian use.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

BOOK STL - Profilitec_BOOK_ShowertecLinear_US.pdf
