Showertec Linear tileable covers with internal frame in AISI 316 stainless steel - 2d files - 3d files

PRODUCT DESCRIPTION

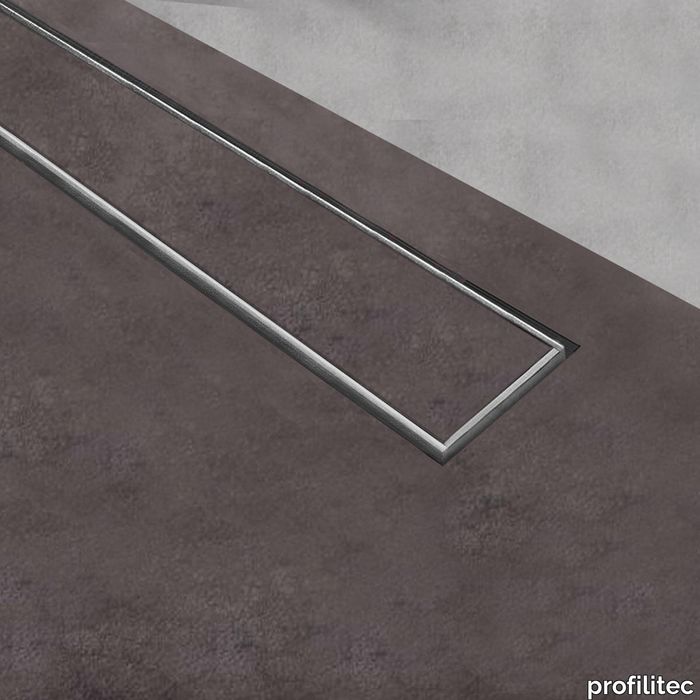

Showertec Linear tileable covers with internal frame in AISI 316 stainless steel Showertec STL - CTF are a family of tileable covers, where the tile is contained in an AISI 316 stainless steel tray. Available in sizes 600-700-800-900-1000-1200 mm, the tray is fixed on an aluminium support and allows the tile to be accommodated, giving it a "frame effect". The system rests on the steel channel through plastic feet which cushion the acoustic transmission. The islands on the channel, on which the feet rest, allow an easy flow of water and guarantee the stability of the tiled part even during pedestrian use.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

BOOK STL - Profilitec_BOOK_ShowertecLinear_US.pdf
