Tileable covers with "invisible" effect for Showertec Linear conduits - 2d files - 3d files

PRODUCT DESCRIPTION

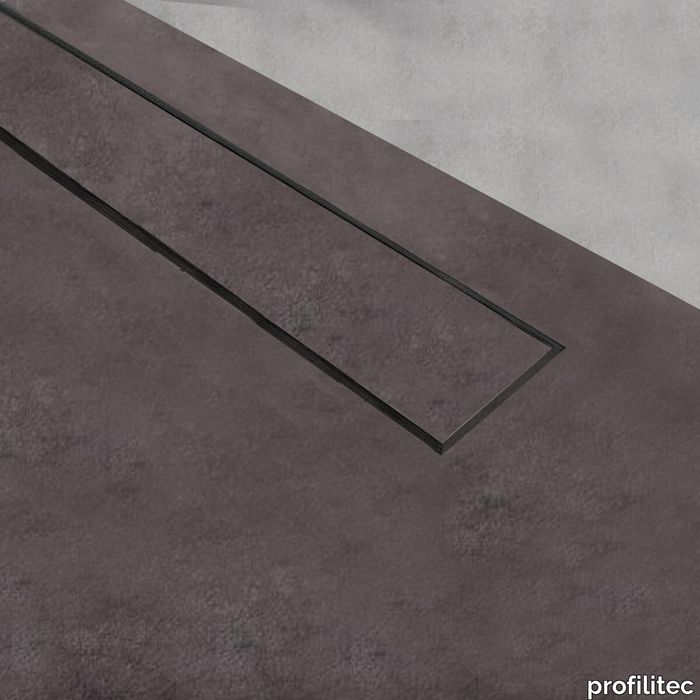

Tileable covers with "invisible" effect for Showertec Linear conduits Showertec STL - CT are a family of tileable covers with "invisible" effect for linear trunking available in sizes 600-700-800-900-1000-1200 mm. Made with an aluminium support on which a membrane is applied which allows easy gluing of the tile. The system rests on the steel channel with plastic feet that cushion the acoustic transmission. The islands on the channel, on which the feet rest, allow an easy flow of water and guarantee the stability of the tiled part even during pedestrian use.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

BOOK STL - Profilitec_BOOK_ShowertecLinear_US.pdf
