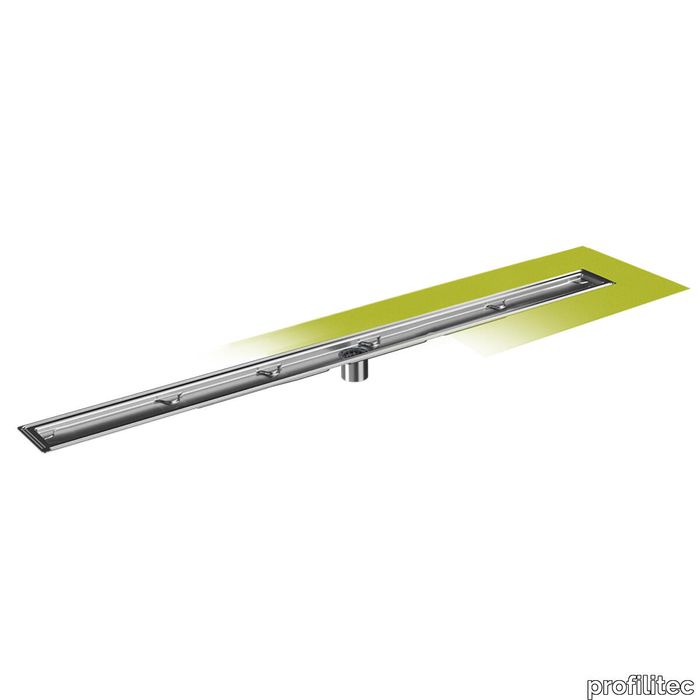

Showertec Linear, linear drain with vertical central drain, or off-set drain - 2d files - 3d files

PRODUCT DESCRIPTION

Showertec Linear, linear drain with vertical central drain, or off-set drain Showertec STL - BC and STL - BO are a family of 316 stainless steel linear channels for water drainage available in the sizes 600-700-800-900-1000-1200 mm. Made with a single piece in AIS 316 stainless steel without welding, they have a vertical drain without a siphon with a diameter of 50 mm that make them compatible with the presloped and waterproofed trays of the showertec STC-TRAY line. The channels are supplied with a pre-applied Foiltec waterproofing membrane which allows them to be connected safely and quickly to the pre-established STL-TRAY shower tray rather than to the on-site shower tray. The channel can be combined with different types of COVER (STL-CT, STL-CTF, STL-C) and finishing frames that allow you to combine the functionality of the product with a unique aesthetic.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

BOOK STL - Profilitec_BOOK_ShowertecLinear_US.pdf
