SHOWERTEC BOARD waterproof board for shower walls - 2d files - 3d files

PRODUCT DESCRIPTION

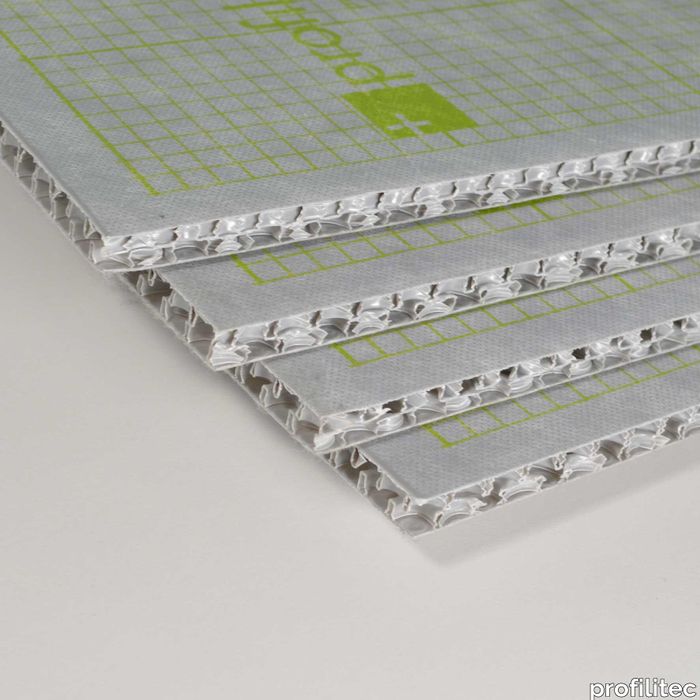

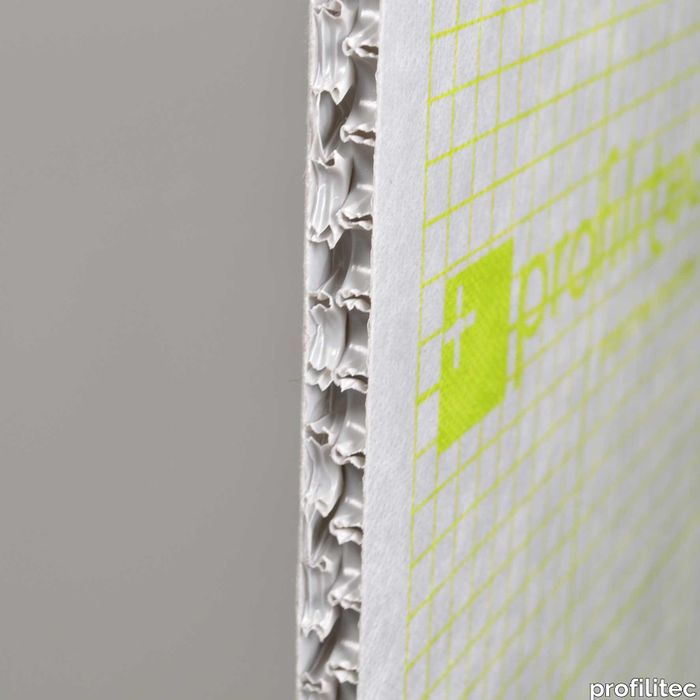

SHOWERTEC BOARD waterproof board for shower walls STBO Showertec Board is a multilayer tile substrate for shower and bathtub surrounds, made of heat bonded polypropylene layers with fleece webbing on both sides. The primary material used in its construction is polypropylene, a thermoplastic polymer that is commonly used in a wide range of applications due to its durability and resistance to heat and moisture. In addition to the layers of polypropylene, Showertec Board also features fleece webbing on both sides. The surface fleece is a soft, non-woven fabric that ensures secure anchoring of the thin-set mortar. The surface of the board features printed gridlines spaced at 3/8” (10 mm) to simplify installation and to save time. Showertec Board is designed to withstand the harsh conditions of shower and bathtub environments, where moisture, vapor and heat are constantly present. It is completely waterproof and provides a rigid and dimensionally stable substrate for tile and other surface materials.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Showertec Board Brochure - Brochure Showertec Board_pagine singole.pdf
