PLANO PS aluminium profile for gypsumboard - 2d files - 3d files

PRODUCT DESCRIPTION

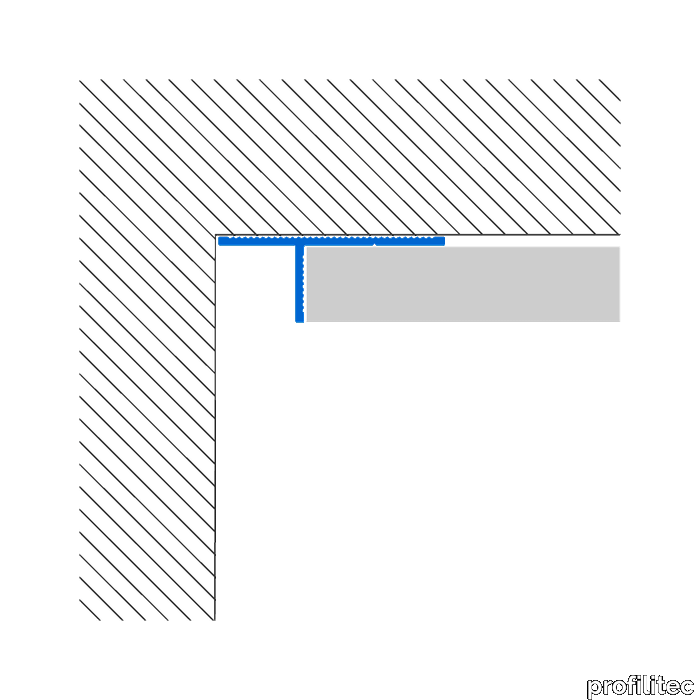

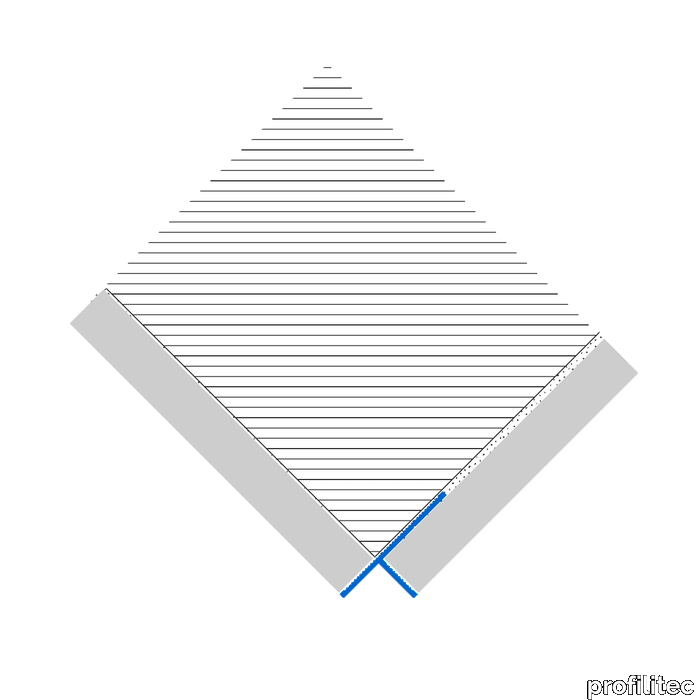

PLANO PS aluminium profile for gypsumboard Plasterboard is the most commonly used material in modern residential and commercial construction. PLANO PS130, a new, one-of-a-kind profile elegantly finishes plasterboard ceiling and wall installations. Its discreet, 13x13mm profile section perfectly edges plasterboard panels, becoming a minimalist design feature. At the floor level, the profile connects with the PLANO DESIGN BF skirting for a fully integrated installation. The result is a profile that leaves a small gap of negative space, almost suspending the wall in mid-air.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Plano PS - Datasheet - Profilitec_Catalogue-page_Plano PS_DE.pdf
