SANITEC IC hygienic resin baseboard - 2d files - 3d files

PRODUCT DESCRIPTION

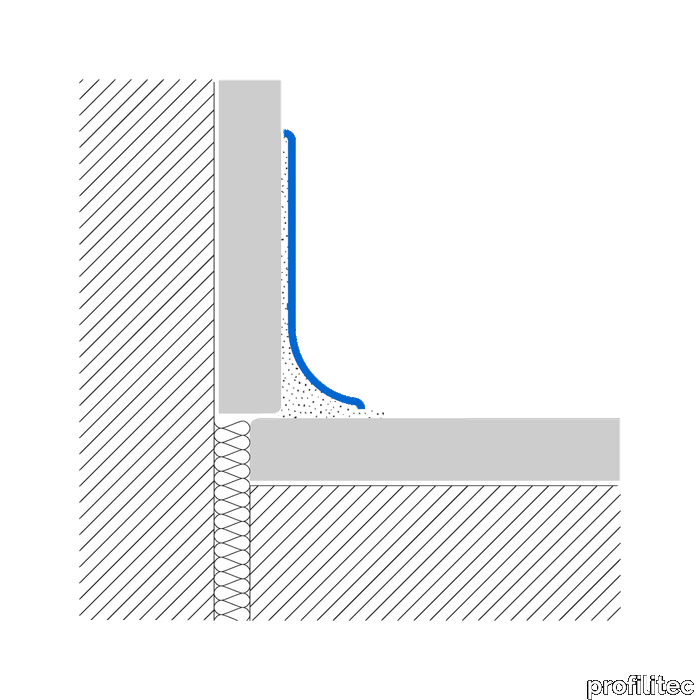

SANITEC IC hygienic resin baseboard Conceived as hygienic wall-to-wall or wall-to-floor transitions, SANITEC IC skirting profiles meet hygiene standards in public spaces subject to sanitary inspection, such as hospitals, food processing plants, industrial kitchens and public bathrooms. Ideal for retrofit applications in public building renovations.The slightly rounded edges seal the profile onto the surface.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Sanitec IC - Datasheet - Profilitec_Catalogue-page_Sanitec-IC_NA.pdf
