BI interlocking aluminium SKIRTING - 2d files - 3d files

PRODUCT DESCRIPTION

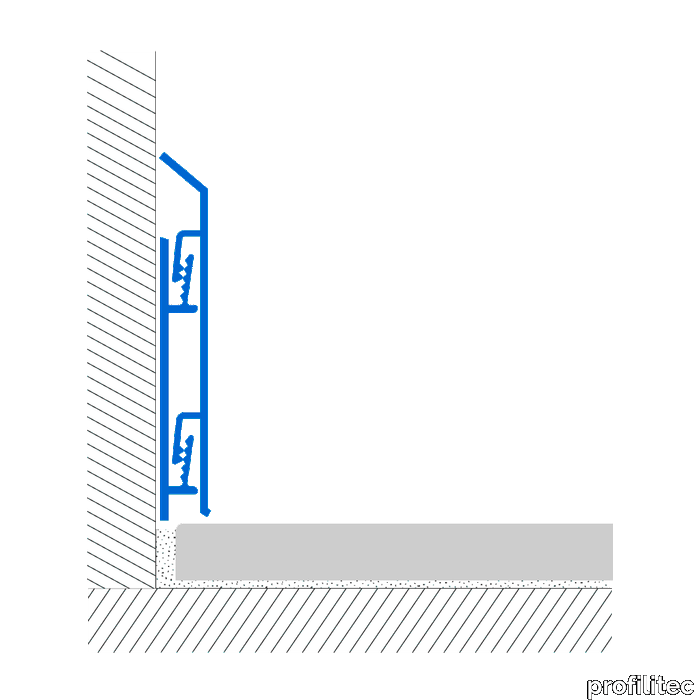

BI interlocking aluminium SKIRTING Durable aluminium skirting BI profiles are composed of two interlocking elements: a track, anchored with flathead screws, which channels low voltage cabling such as telephone, TV and computer wiring; an interlocking finishing profile conceals and protects the cabling yet allows fast and easy access. The skirting is ideally suitable for offices and shopping centers where cabling is required and elegant detailing is essential.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Baseboard Brochure - Profilitec_Brochure-Baseboard_2019 web pagine singole.pdf
