DRAINTEC 8S draining membrane - 2d files - 3d files

PRODUCT DESCRIPTION

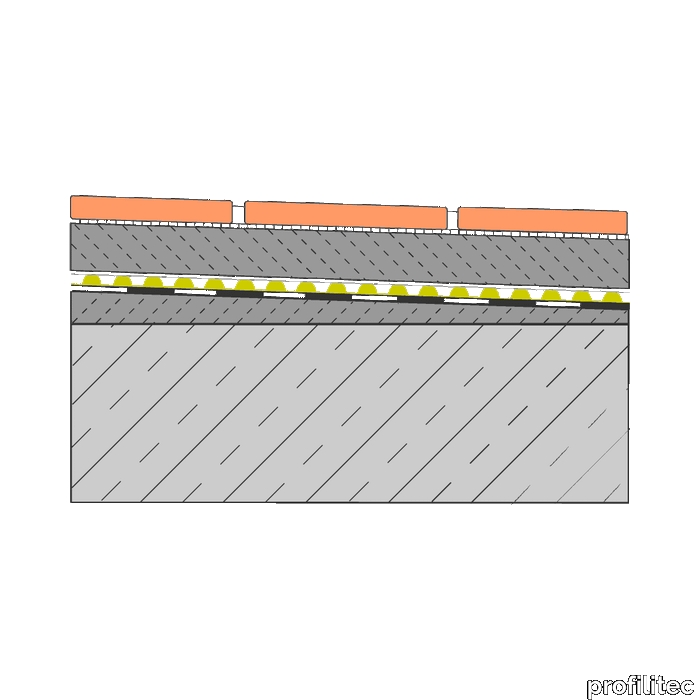

DRAINTEC 8S draining membrane DRAINTEC 8S, truncated cone section drainage membrane with 2x2 mm synthetic mesh, ideal for laying floors on a draining screed. Advantages using DRAINTEC 8S: Advantages deriving from the application of the DRAINTEC 8S system: • Extends the life of the tiles • Protects traditional waterproofing • It reduces the deterioration of the structures avoiding the efflorescence and the detachment of the coating • Solves the problem of water over-pressures and consequent cracks • Ensures thermo-acoustic insulation by constituting an 8 mm air gap

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Draintec 8S - Datasheet - Profilitec_Catalogue-page_Draintec-8S_NA.pdf
