BORDERTEC BD20 perimeter draining for 2 cm paving tiles. - 2d files - 3d files

PRODUCT DESCRIPTION

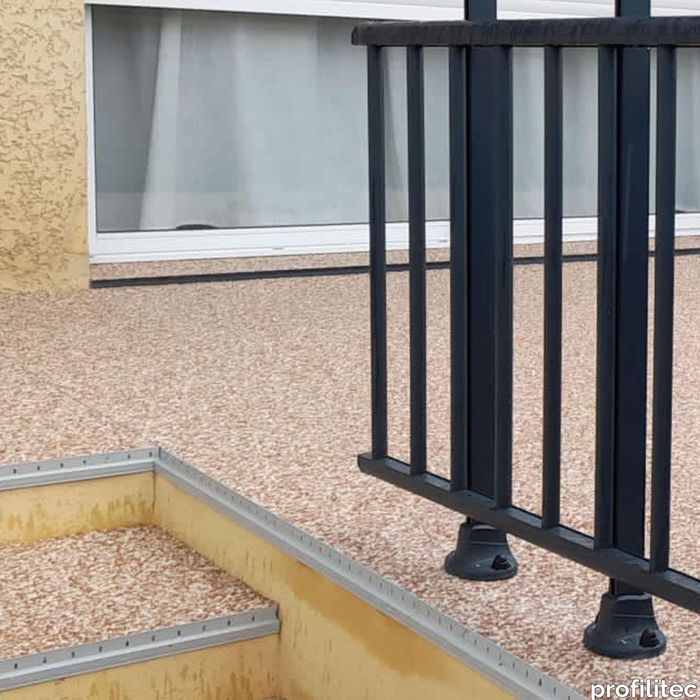

BORDERTEC BD20 perimeter draining for 2 cm paving tiles. Bordertec BD20 is a perimeter profile for finishing and protecting the exposed concrete edge of balconies and balconies for 20 mm big porcelain pavers. With simple and minimalist shapes, the profile is equipped with oval holes for the drainage of water and a special design to facilitate the flow and avoid water infiltration in the screed. Available in Pastel Grey (A22) or Micaceous (A50).

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]
