COPRITEC CP joint covers for large buildings - 2d files - 3d files

PRODUCT DESCRIPTION

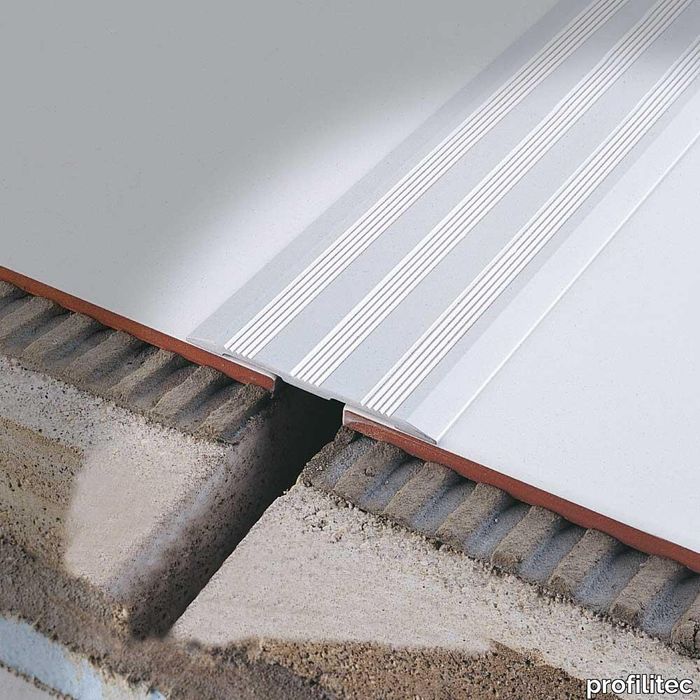

COPRITEC CP joint covers for large buildings In industrial and commercial flooring, large continuous structural bays, and between two bearing structures, a separation joint cover is needed to allow differential movement between adjacent materials. COPRITEC CP is equipped with a unique self-adhesive that provides excellent movement absorption. If using screws to anchor the profile, apply the screws on only one side, allowing the other side to move freely, accommodating contraction and expansion. This profile is also suitable as bumper protection for stretchers and as wall protection rails in public buildings.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Copritec CP - Datasheet - Profilitec_Catalogue-page_Copritec-CP_NA.pdf
