JOINTEC GT profiles for industrial floors - 2d files - 3d files

PRODUCT DESCRIPTION

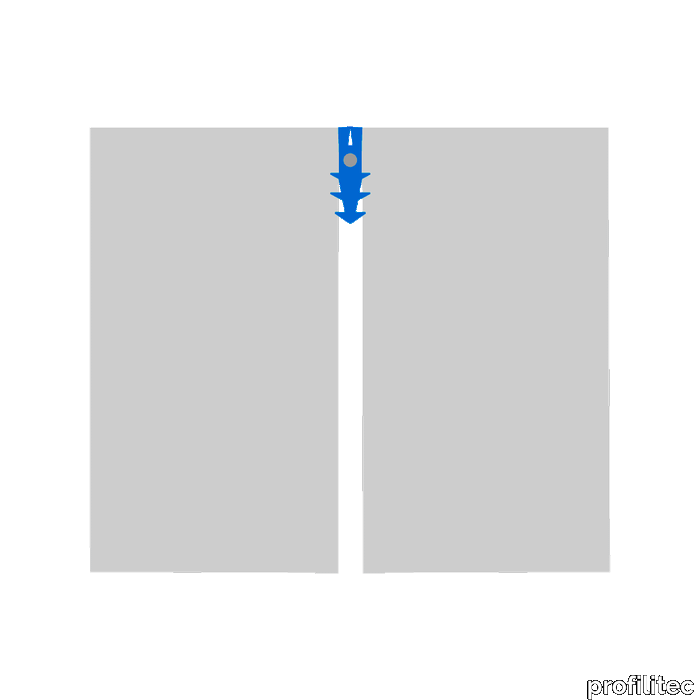

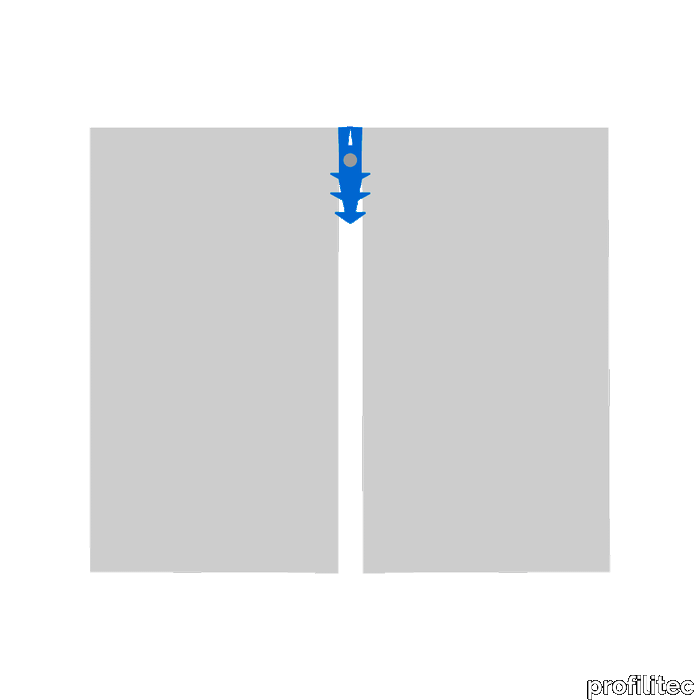

JOINTEC GT profiles for industrial floors When the concrete cast has been completed, control joints must be cut to avoid random cracking due to temperature changes and drying shrinkage. Equipped with an embedded fiberglass thread, JOINTEC GT synthetic resin profiles are designed to be inserted directly into the control joints. The innovative fiberglass thread prevents lengthening or shrinking of the profile typical of traditional control joint fillers. The flexible shape of the profile section can be inserted into cuts 3.5 - 5.5mm wide.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Jointec GT - Datasheet - Profilitec_Catalogue-page_Jointec-GT_NA.pdf
