COFLEX CTM metal expansion joints with removable rubber insert - 2d files - 3d files

PRODUCT DESCRIPTION

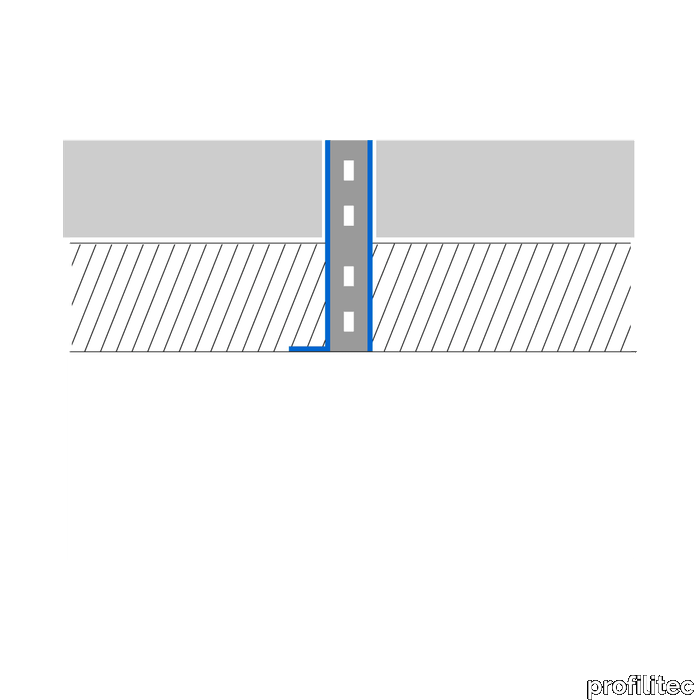

COFLEX CTM metal expansion joints with removable rubber insert COFLEX CTM expansion joints are composed of a metal structure and a flexible yet durable central infill that can be ground and polished on-site. Due to their resistance to corrosion and wear, the profiles are ideal for resin-based terrazzo and natural stone tile layings. Ideally used in retail shops, hotels, sports facilities and schools. Suggested floor bays: 16m2.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Joints - Brochure - Brochure Giunti_ITENFRDEES_web_29-10-21.pdf
