COFLEX CF joints in synthetic material for mortar beds - 2d files - 3d files

PRODUCT DESCRIPTION

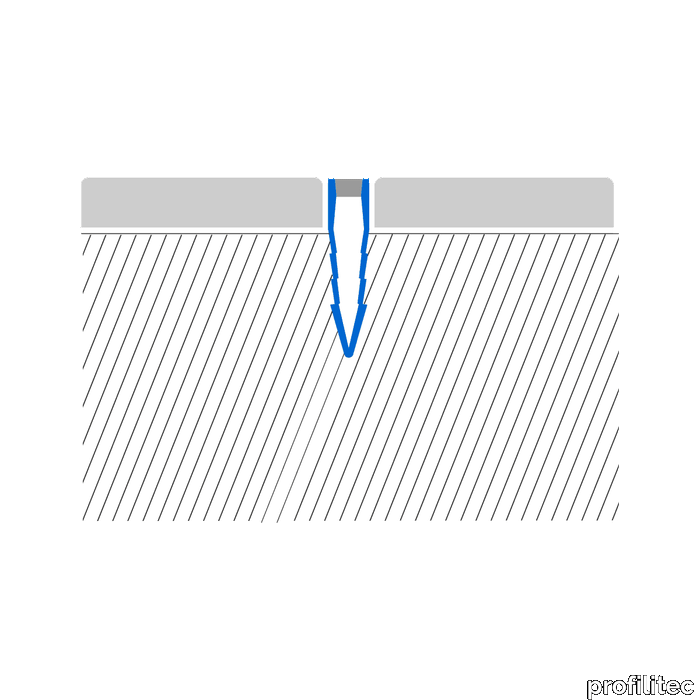

COFLEX CF joints in synthetic material for mortar beds COFLEX CF mortar bed movement joints in co-extruded synthetic resin are conceived to subdivide large tile bays. Exclusively suitable for pedestrian traffic, this profile provides limited protection to the tile edges and compensates slight differential movement due to substrate contraction and expansion. Install with tile adhesive. Ideally used in retail shops, hotels, sports facilities and schools. Suggested floor bays: 16m2. How to install joints COFLEX CF INSTALLATION: • Align and position the expansion joint so that it slightly protrudes above the mortar bed. • Lay the tiles as normal. • Level the joint until it is completely embedded and flush with the tile edge. • Completely fill the residual space between the profile and tile with grout.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Coflex CF - Datasheet - Profilitec_Catalogue-page_Coflex-CF_NA.pdf
