COFLEX CK metal expansion joints - 2d files - 3d files

PRODUCT DESCRIPTION

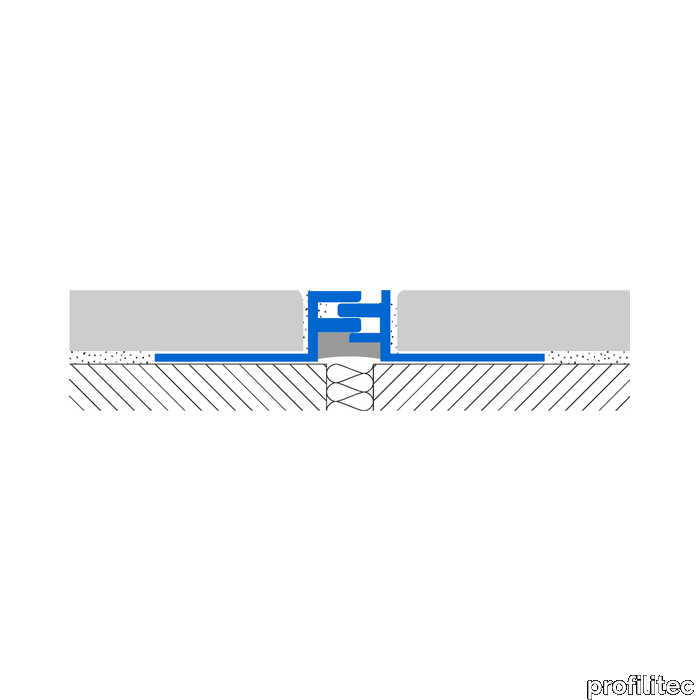

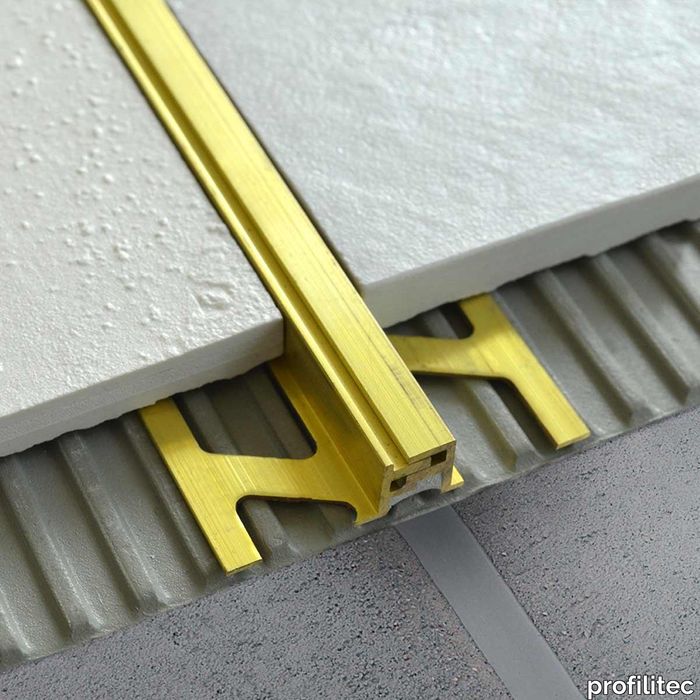

COFLEX CK metal expansion joints COFLEX CK technical sliding expansion joints are conceived for thin-set installations. Two metal sides interlock and slide with an internal gap of +/- 2mm, redistributing differential movement due to material compression and expansion. The profile is supplied already assembled in a “neutral” position, held together by an elastic gasket in the lower profile section. It offers durability and high resistance to vertical loads with a modern design. Suggested floor bays: 16 - 25m2.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Coflex CK - Datasheet - Profilitec_Catalogue-page_Coflex-CK_NA.pdf
