COFLEX CBL expansion joints formed by the coupling of 2 profiles - 2d files - 3d files

PRODUCT DESCRIPTION

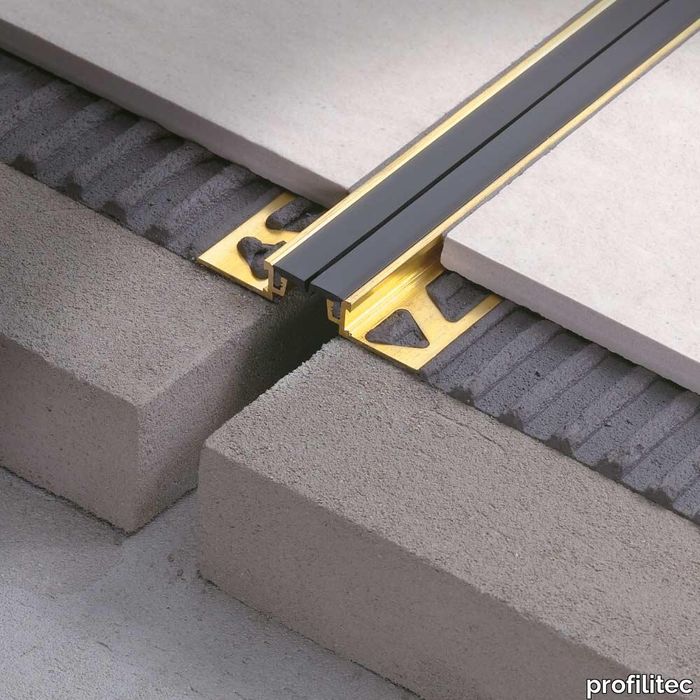

COFLEX CBL expansion joints formed by the coupling of 2 profiles COFLEX CBL profiles are composed of twin metal profiles joined by a central synthetic resin seal. Designed to bear distributed loads, the vertical edge has a patented dovetailed internal cavity which maximizes grout grip and tile edge protection. The central rubber insert absorbs and redistributes differential movement within the tile surface. The profile size is chosen according to the tile thickness and should remain. 5 +/- 1mm below the floor elevation. Ideally used in retail shops, hotels, sports facilities and schools. Suggested floor bays: 16 - 25m2.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Joints - Brochure - Brochure Giunti_ITENFRDEES_web_29-10-21.pdf
