COFLEX CBR joints: coupling of profiles and synthetic insert - 2d files - 3d files

PRODUCT DESCRIPTION

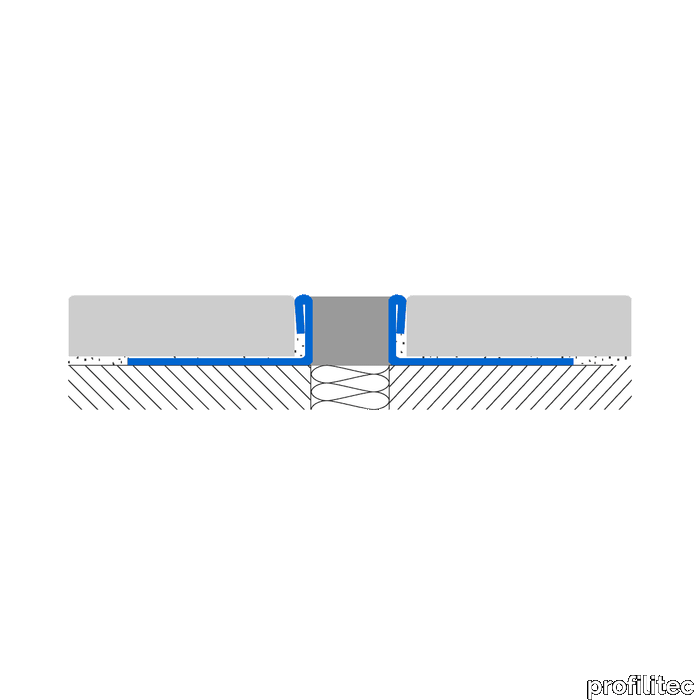

COFLEX CBR joints: coupling of profiles and synthetic insert COFLEX CBR is composed of a twin double metal profile to host the internal rubber seal. This product has been designed to ensure a certain grade of protection to the tile and relative work load it may have to bear. The synthetic rubber insert efficiently compensates and absorbs flooring movements along with the covering material. COFLEX CBR is suitable to bear distributed weights and tensions. Select a joint with the height matching exactly the tile thickness, the joint must not rise above the level of covering surface but should be laid 0,5 ÷ 1 mm below the edge of the tiles. Suggested flooring bays 10-25 m² (as per standard UNI 11499:2013). Typical flooring areas: retail shops, hotels, sporting centers and schools.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Joints - Brochure - Brochure Giunti_ITENFRDEES_web_29-10-21.pdf
