COFLEX CTL expansion joints with high resistance - 2d files - 3d files

PRODUCT DESCRIPTION

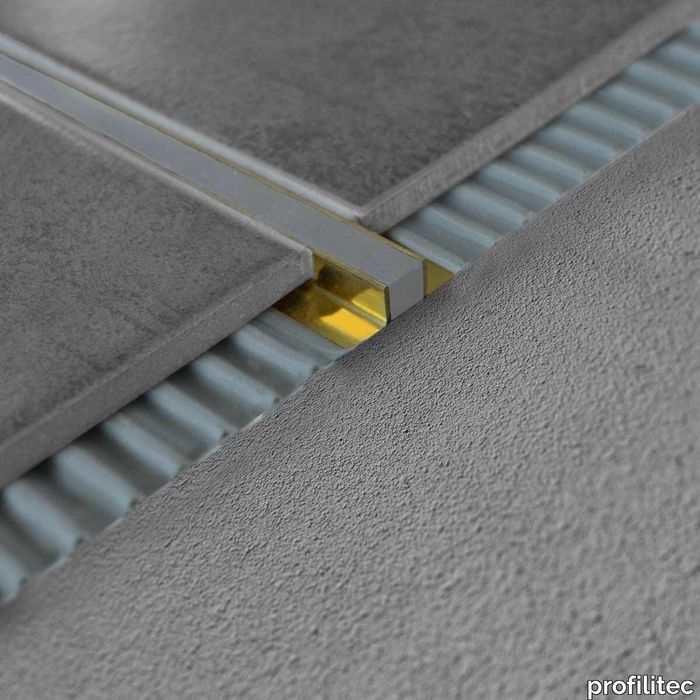

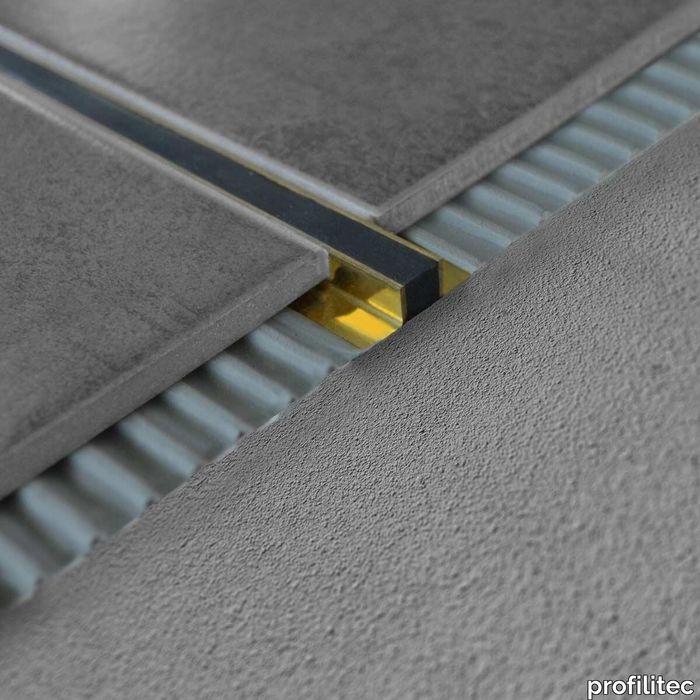

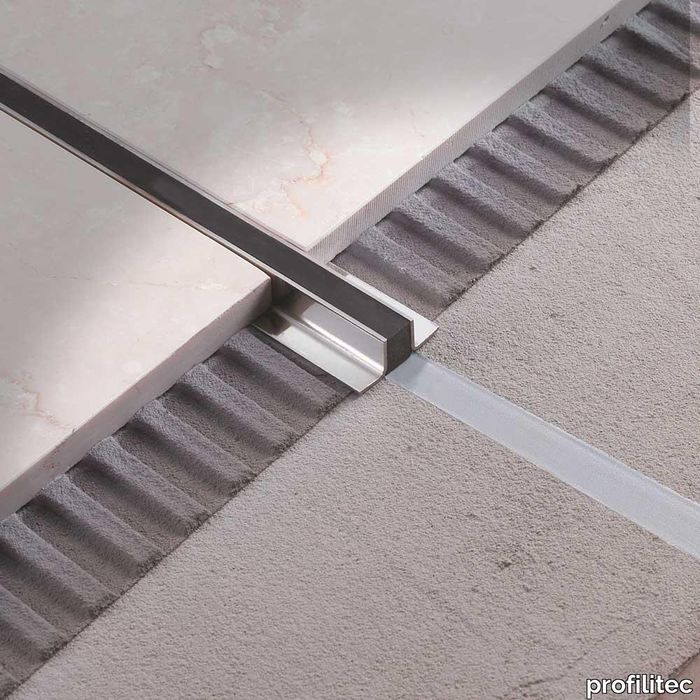

COFLEX CTL expansion joints with high resistance COFLEX CTL expansion joints are composed of a metal structure and a flexible yet durable central infill that can be ground and polished on-site. Due to their resistance to corrosion and wear, the profiles are ideal for stone tile layings in industrial and commercial settings. The metal angle profile protects vulnerable tile edges against mechanical stress that can cause chipping and cracking; the metal flanges absorb and redistribute loads, material compression and expansion. Ideally used in retail shops, hotels, sports facilities and schools. Suggested floor bays: 16m2.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Joints - Brochure - Brochure Giunti_ITENFRDEES_web_29-10-21.pdf
