JOINTEC GDL joints with supporting structure in aluminium and rubber - 2d files - 3d files

PRODUCT DESCRIPTION

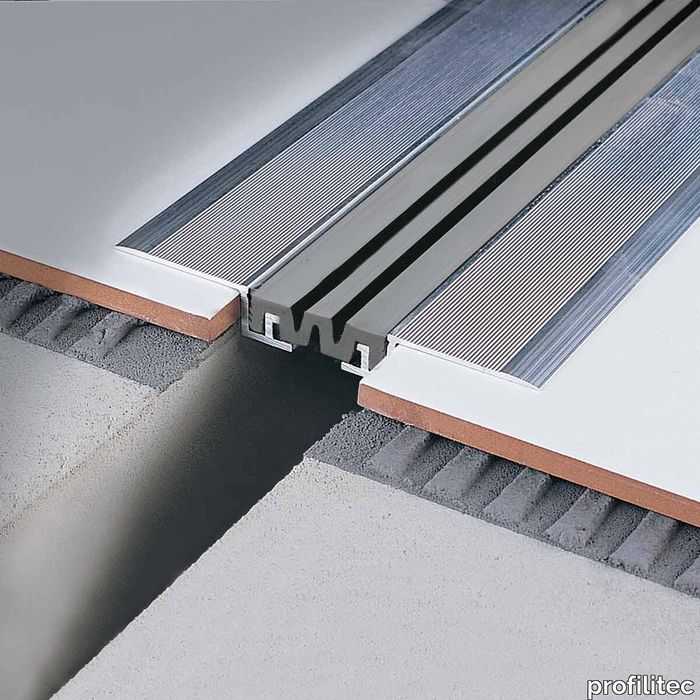

JOINTEC GDL joints with supporting structure in aluminium and rubber Structural joints with an aluminium bearing structure and a synthetic rubber insert. Designed to withstand structural movements of large or compound buildings. They must be installed on existing surfaces, also vertically, in correspondence with the spaces existing between two semi-attached parts making up the same building or between two different spans. They are able to connect these spaces allowing vertical, horizontal and transversal movements, depending on the settlements of the building, be they cyclic or permanent.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Jointec GD - GDL - Datasheet - Profilitec_Catalogue-page_Jointec-GD-GDL_NA.pdf
