JOINTEC GDLP angular version downward anchoring of GELP joints - 2d files - 3d files

PRODUCT DESCRIPTION

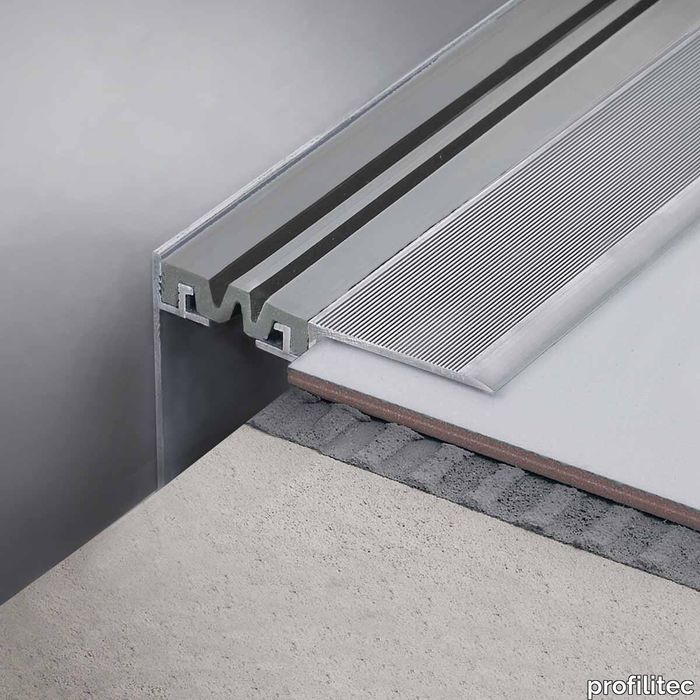

JOINTEC GDLP angular version downward anchoring of GELP joints The structural joints of the Jointec GDLP series are the GDL joints transformed into the angular version, for perimeter applications between the floor and the wall, with the use of the multipurpose module JOINTEC P: an aluminium side anchorage profile that can be applied both "to climb" ”, For anchoring to the wall, is hidden in the perimeter gap of the floor. Gates (47 mm) horizontal + 7 / -6 mm vertical dilations + 2 / -2mm.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Jointec GEP - GELP - GMP - GMLP - GDP - GDLP - Datasheet - Profilitec_Catalogue-page_Jointec-GEP-GELP-GMP-GMLP-GDP-GDLP_NA.pdf
