JOINTEC GDP angular version of the downward anchoring of the GEP joints - 2d files - 3d files

PRODUCT DESCRIPTION

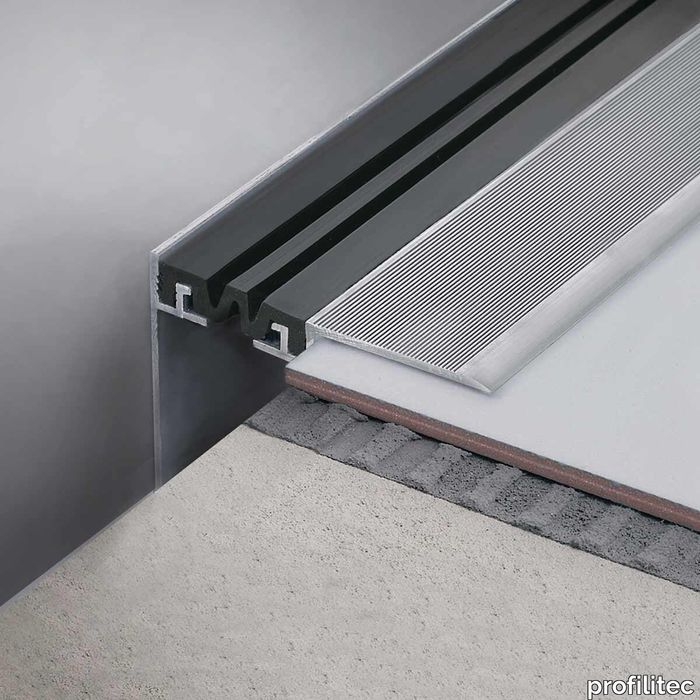

JOINTEC GDP angular version of the downward anchoring of the GEP joints The structural joints of the Jointec GDP series are the GD joints transformed into the angular version, for perimeter applications between the floor and the wall, with the use of the multipurpose module JOINTEC P: an aluminium side anchorage profile that can be applied both "to climb" ”, For anchoring to the wall, is hidden in the perimeter gap of the floor. Gates (37) horizontal + 7 / -6 mm vertical dilations + 2 / -2mm.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Jointec GEP - GELP - GMP - GMLP - GDP - GDLP - Datasheet - Profilitec_Catalogue-page_Jointec-GEP-GELP-GMP-GMLP-GDP-GDLP_NA.pdf
