JOINTEC GMP angular version upward anchoring of GM joints - 2d files - 3d files

PRODUCT DESCRIPTION

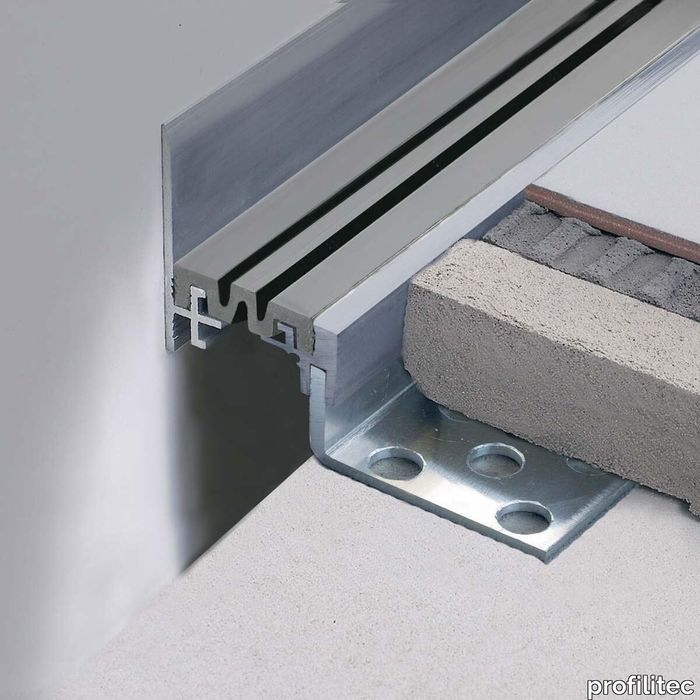

JOINTEC GMP angular version upward anchoring of GM joints The structural joints of the Jointec GMP are the GM joints transformed into the angular version, for perimeter applications between the floor and the wall, with the use of the multipurpose module JOINTEC P: an aluminium lateral anchoring profile that can be applied both to "climb ”, For anchoring to the wall, is hidden in the perimeter gap of the floor. Gates (37 mm) horizontal + 7 / -6 mm vertical dilations + 2 / -2mm.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Jointec GEP - GELP - GMP - GMLP - GDP - GDLP - Datasheet - Profilitec_Catalogue-page_Jointec-GEP-GELP-GMP-GMLP-GDP-GDLP_NA.pdf
