JOINTEC GEP angular version upward anchoring of GE joints - 2d files - 3d files

PRODUCT DESCRIPTION

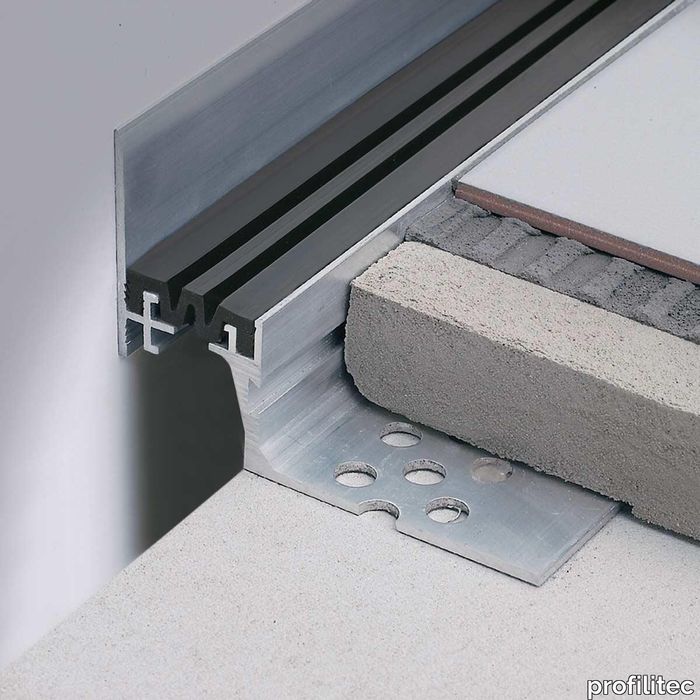

JOINTEC GEP angular version upward anchoring of GE joints The structural joints of the Jointec GEP series are the GE joints transformed into the angular version, for perimeter applications between the floor and the wall, with the use of the multipurpose module JOINTEC P: a lateral anchoring profile in aluminium that can be applied both "to go up" ”, For anchoring to the wall, is hidden in the perimeter gap of the floor. Gates (37 mm) horizontal + 7 / -6 mm vertical dilations + 2 / -2mm.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Jointec GEP - GELP - GMP - GMLP - GDP - GDLP - Datasheet - Profilitec_Catalogue-page_Jointec-GEP-GELP-GMP-GMLP-GDP-GDLP_NA.pdf
