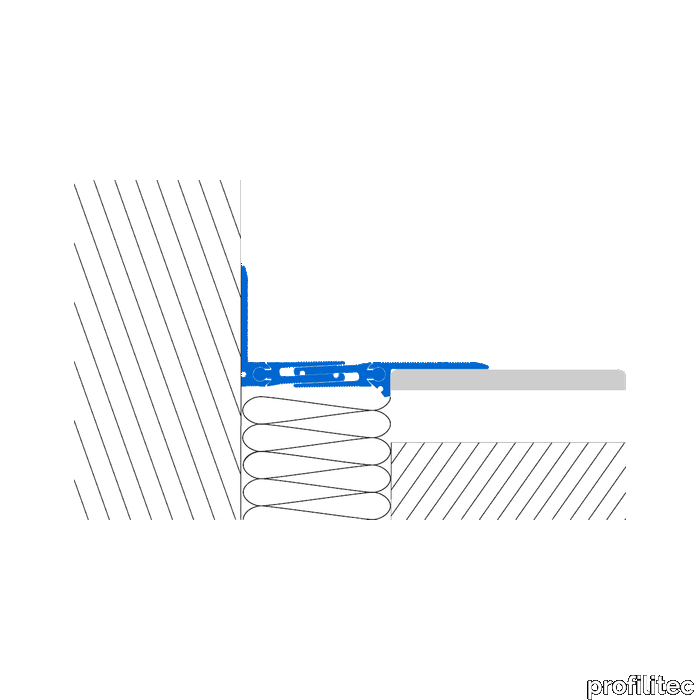

JOINTEC GADP structural joints in aluminium - 2d files - 3d files

PRODUCT DESCRIPTION

JOINTEC GADP structural joints in aluminium JOINTEC GADP aluminium sliding expansion joints are wall and floor profiles structurally designed to bear loads of large scale buildings or building compounds. They can be installed in the interstitial space between two sections of a building or between two bays. This technical joint links these interspaces, moving three-dimensionally to accommodate a building’s structural and material settlement. The structural bays defined by this profile should be further subdivided with smaller scale movement / expansion joints, chosen according to the expected use and flooring type. The vertical anchoring flange of the profile can be installed on the wall facing upwards or downwards hidden in the gap between the wall and the floor. How to install structural joints JOINTEC GADP INSTALLATION: • Anchor the side plates with: a) appropriate screws, 18cm on center, on both sides of the profile and b) two-part epoxy adhesive.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Jointec GADP - Datasheet - Profilitec_Catalogue-page_Jointec-GADP_NA.pdf
