JOINTEC GAD structural floor joints - 2d files - 3d files

PRODUCT DESCRIPTION

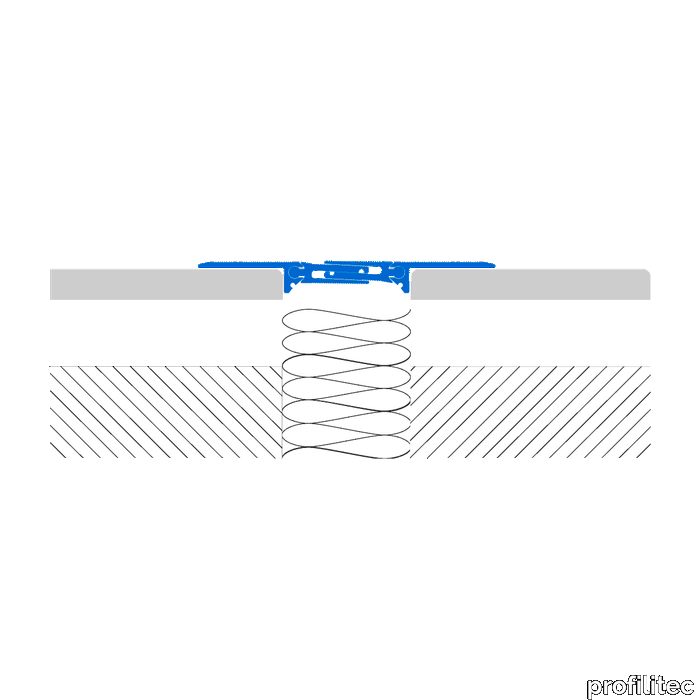

JOINTEC GAD structural floor joints JOINTEC GAD aluminium sliding expansion joints are floor profiles structurally designed to bear loads of large scale buildings or building elements. They can be installed in the interstitial space between two sections of a building or between two bays. This technical joint links these interspaces, moving three-dimensionally to accommodate a building’s structural and material settlement. The structural bays defined by this profile should be further subdivided with smaller scale movement/expansion joints, chosen according to the expected use and flooring type. How to install structural joints INSTALLATION: • Anchor the side plates with: a) appropriate screws, 18cm on center, on both sides of the profile and b) two-part epoxy adhesive.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Jointec GAD - Datasheet - Profilitec_Catalogue-page_Jointec-GAD_NA.pdf
