JOINTEC GA structural and expansion joints - 2d files - 3d files

PRODUCT DESCRIPTION

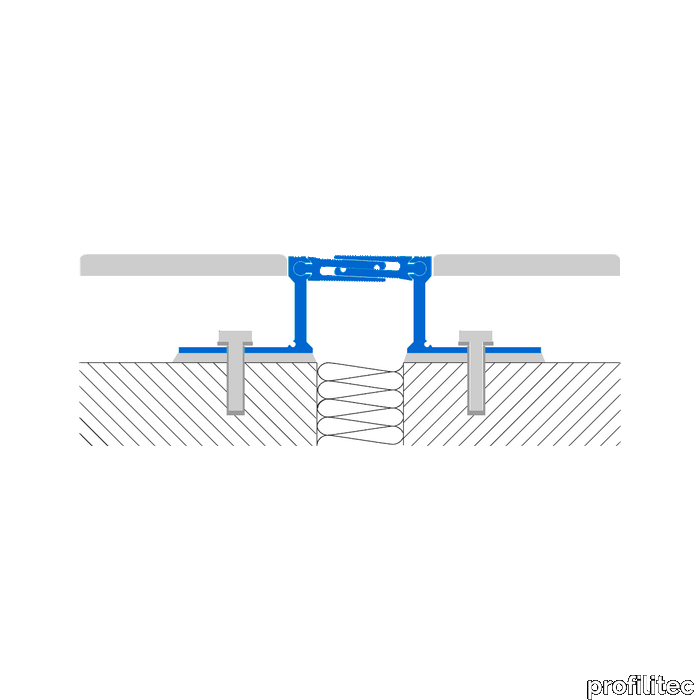

JOINTEC GA structural and expansion joints JOINTEC GA aluminium sliding expansion joints are structurally designed to bear loads of large scale buildings or building compounds. They can be installed in the interstitial space between two sections of a building or between two bays. This technical joint links these interspaces, moving three-dimensionally to accommodate a building’s structural and material settlement. The sliding components of the profile allow horizontal movement and vertical pivoting, while eliminating the accumulation of dirt and dust.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Jointec GA - Datasheet - Profilitec_Catalogue-page_Jointec-GA_NA.pdf
