JOINTEC GAL aluminium sliding structural joints - 2d files - 3d files

PRODUCT DESCRIPTION

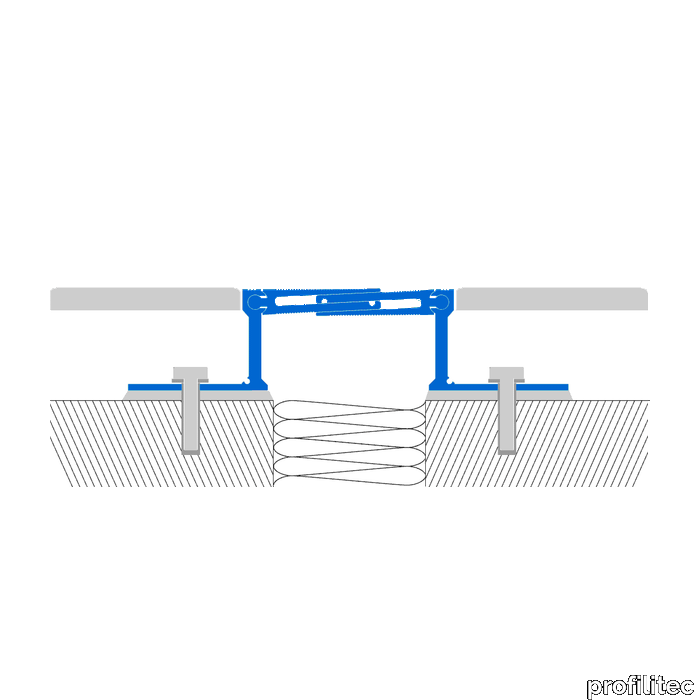

JOINTEC GAL aluminium sliding structural joints JOINTEC GAL aluminium sliding expansion joints are structurally designed to bear loads of large scale buildings or building compounds. They can be installed in the interstitial space between two sections of a building or between two bays. This technical joint links these interspaces, moving three-dimensionally to accommodate a building’s structural and material settlement. How structural joints JOINTEC GAL function The sliding components of the profile allow horizontal movement and vertical pivoting, while eliminating the accumulation of dirt and dust. The structural bays defined by this profile should be further subdivided with smaller scale movement / expansion joints, chosen according to the expected use and flooring type. How to install structural joints INSTALLATION: • Assemble the profile by sliding the two horizontal elements into the lateral flanges. • Align the expansion joint using the alignment bracket provided. • Anchor the side flanges in the substrate with appropriate screws, 30cm on center, on both sides of the profile. • Lay mortar bed over the side flanges, and install the tiles as normal.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Jointec GAL - Datasheet - Profilitec_Catalogue-page_Jointec-GAL_NA.pdf
