JOINTEC GML structural joints - 2d files - 3d files

PRODUCT DESCRIPTION

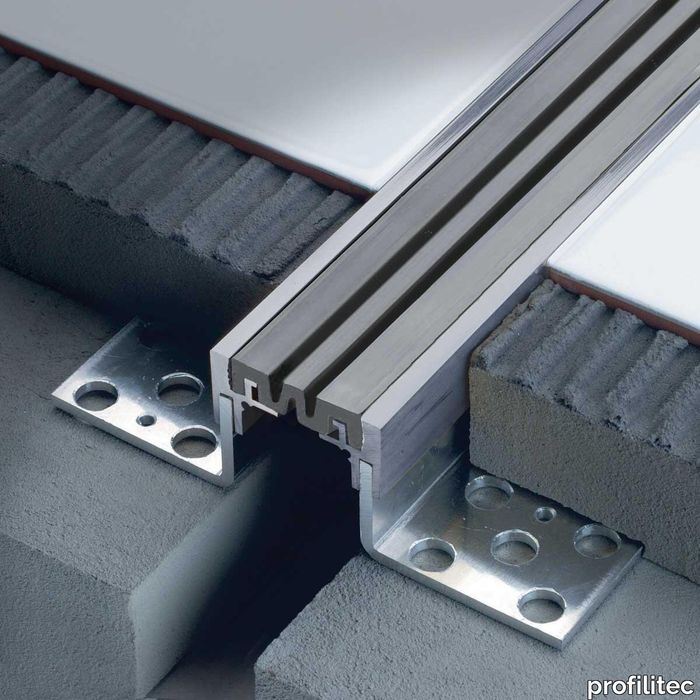

JOINTEC GML structural joints Modular structural joints with visible part in brass or aluminium on lower aluminium module that allows to obtain different heights for dilatations of 47 mm with horizontal (+ 7 / -7) and horizontal (+ 3 / -3) dilations. Designed for withstand structural movements of large or compound buildings. They must be installed in correspondence of the spaces existing between two semi-attached parts of the same building or between two different spans. They are able to connect these spaces, allowing vertical, horizontal and transverse movements, depending on the settlements of the building, be they cyclic or permanent. Within the modules created by the structural joints, however, a further fractionation of the surface with a grid of fraction joints must always be provided, depending on the type of passage provided on the surface.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Jointec GM - GML - Datasheet - Profilitec_Catalogue-page_Jointec-GM-GML_NA.pdf
