JOINTEC GM modular structural joints in brass or aluminium - 2d files - 3d files

PRODUCT DESCRIPTION

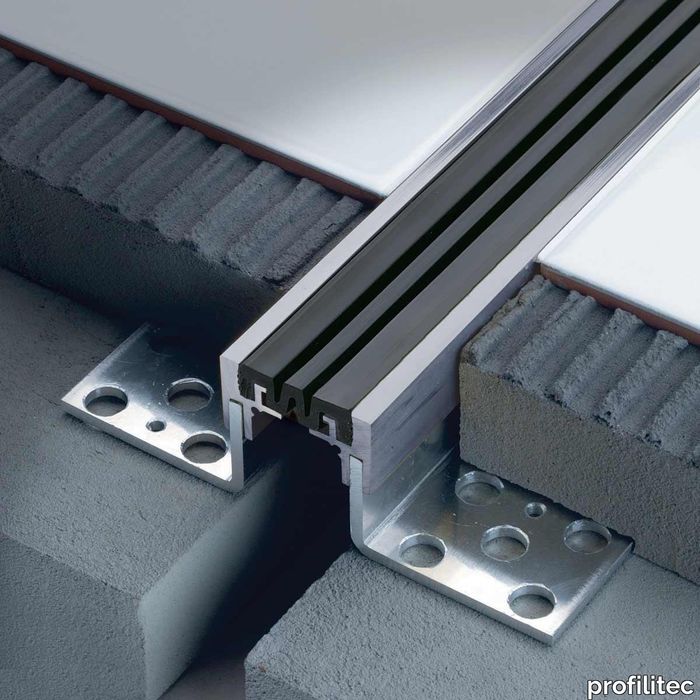

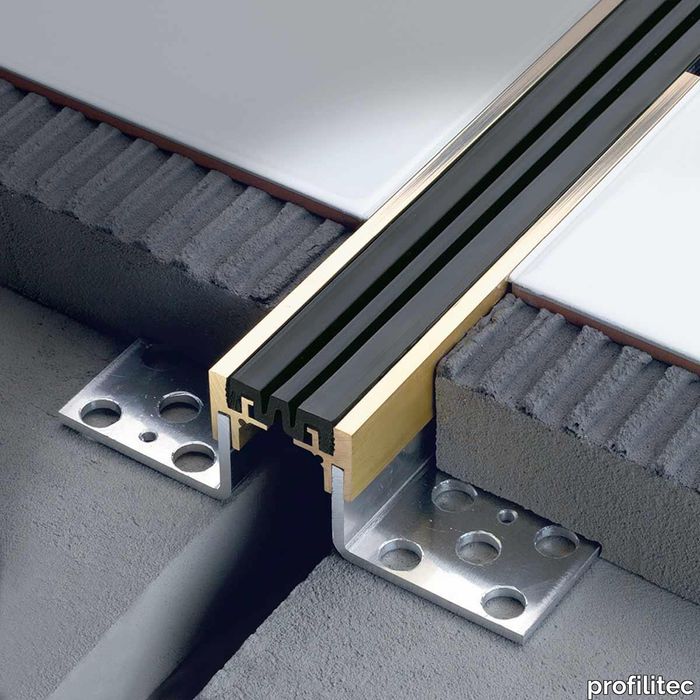

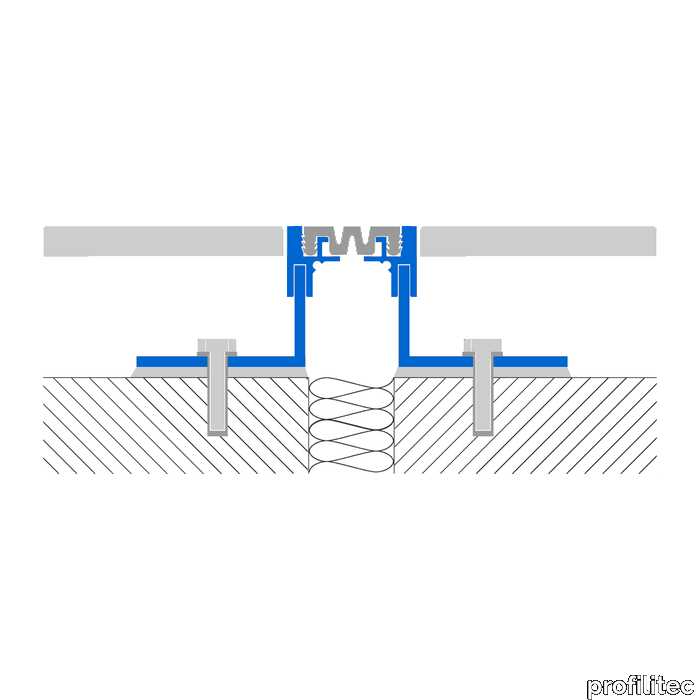

JOINTEC GM modular structural joints in brass or aluminium JOINTEC GM profiles are modular expansion joints that can be adapted to various heights. They are composed of aluminium, brass or stainless steel modules available in three different sizes that stack upon twin aluminium anchoring flanges. A central, synthetic rubber insert joins the two sides of the profile. Designed to bear loads of large scale buildings or building compounds, they can be installed in the interstitial space between two sections of a building or between two bays. This technical joint links these interspaces, moving horizontally and vertically to accommodate a building’s structural and material settlement. The structural bays defined by this profile should be further subdivided with smaller scale movement / expansion joints, chosen according to the expected use and flooring type.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Jointec GM - GML - Datasheet - Profilitec_Catalogue-page_Jointec-GM-GML_NA.pdf
