Structural joints in aluminium with rubber insert: JOINTEC GEL - 2d files - 3d files

PRODUCT DESCRIPTION

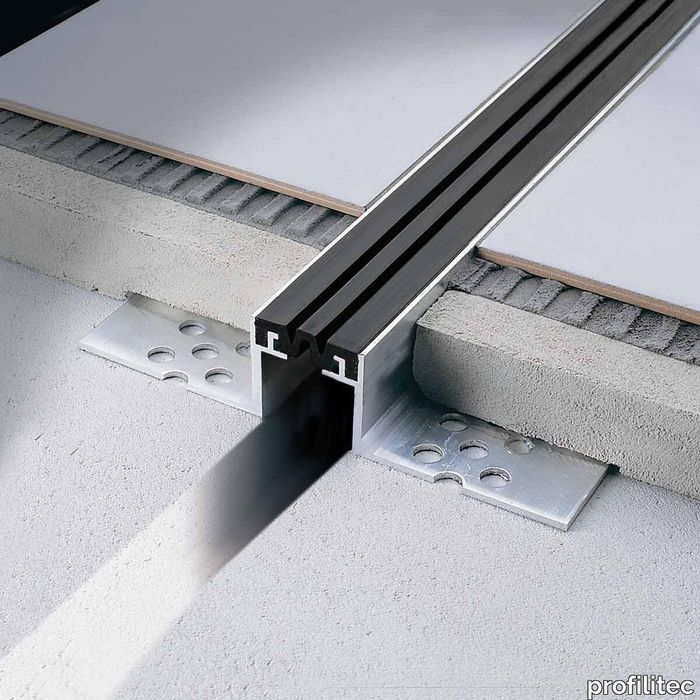

Structural joints in aluminium with rubber insert: JOINTEC GEL Structural joints with an aluminium load-bearing structure and a synthetic rubber insert for 48 mm gates with horizontal (+ 8 / -7) and horizontal (+ 3 / -3) dilations. Designed to withstand structural movements of large buildings or compounds. They must be installed in correspondence of the spaces existing between two semi-attached parts making up the same building or between two different spans. They are able to connect these spaces, allowing vertical and horizontal movements according to the building settlements, be they cyclic or permanent. Within the modules created by the structural joints, however, a further fractionation of the surface with a grid of fraction joints must always be provided, depending on the type of passage provided on the surface.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Jointec GE - GEL - Datasheet - Profilitec_Catalogue-page_Jointec-GE-GEL_NA.pdf
