JOINTEC GE aluminium sliding structural joints - 2d files - 3d files

PRODUCT DESCRIPTION

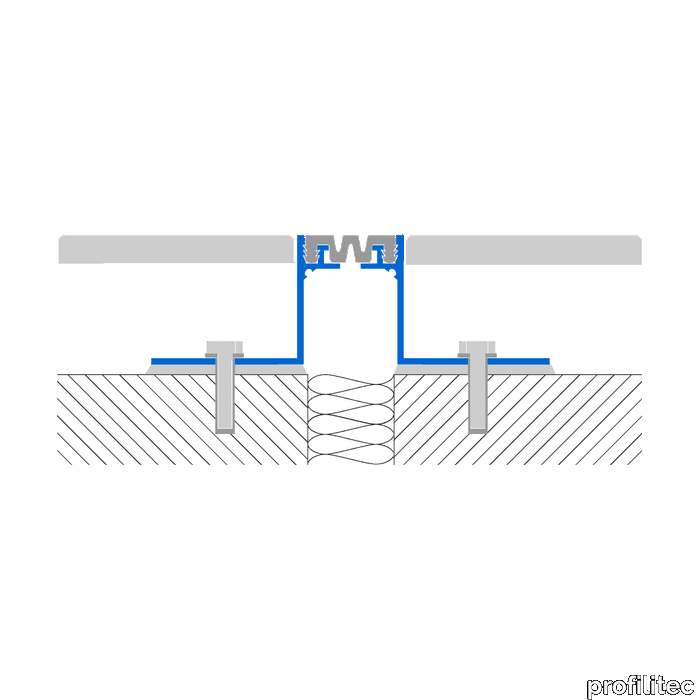

JOINTEC GE aluminium sliding structural joints JOINTEC GE aluminium structural expansion joints are composed of twin metal profiles joined by a central synthetic rubber insert. Designed to bear loads of large scale buildings or building compounds, they can be installed in the interstitial space between two sections of a building or between two bays. This technical joint links these interspaces, moving vertically and horizontally to accommodate a building’s structural and material settlement. The structural bays defined by this profile should be further subdivided with smaller scale movement / expansion joints, chosen according to the expected use and flooring type.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Jointec GE - GEL - Datasheet - Profilitec_Catalogue-page_Jointec-GE-GEL_NA.pdf
