SANITEC IC Cove trim - 2d files - 3d files

PRODUCT DESCRIPTION

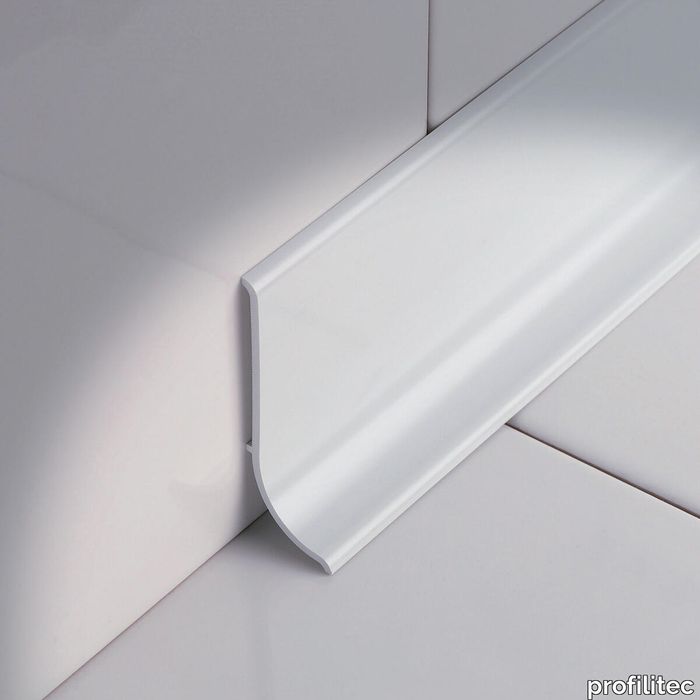

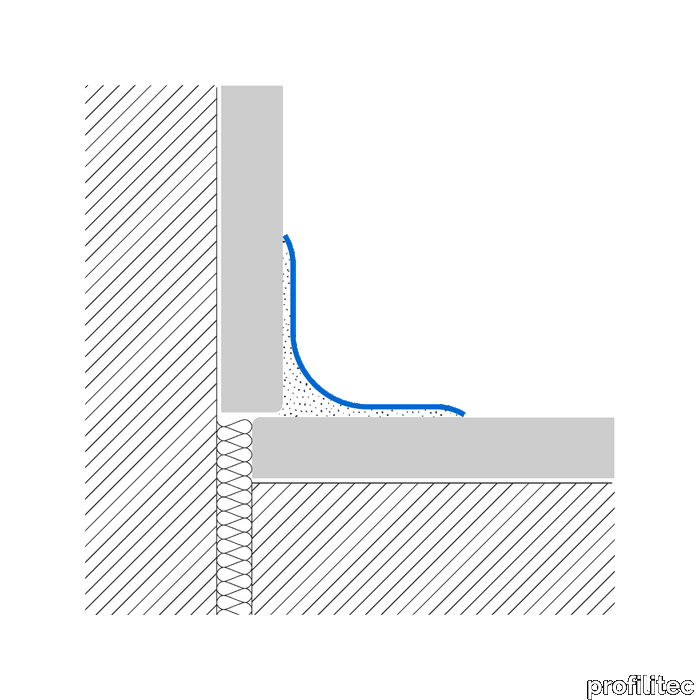

SANITEC IC Cove trim Conceived as hygienic wall-to-wall or wall-to-floor transitions, SANITEC IC cove-shaped profiles meet hygiene standards in public spaces subject to sanitary inspection, such as hospitals, food processing plants, industrial kitchens and public bathrooms. Ideal for retrofit applications in public building renovations.The slightly rounded edges seal the profile onto the surface. Use our adhesive for on-site installation. The H 60mm version also acts as a skirting.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Sanitec IC - Datasheet - Profilitec_Catalogue-page_Sanitec-IC_NA.pdf
