Tile corners: ROUNDCORNER RE trims - 2d files - 3d files

PRODUCT DESCRIPTION

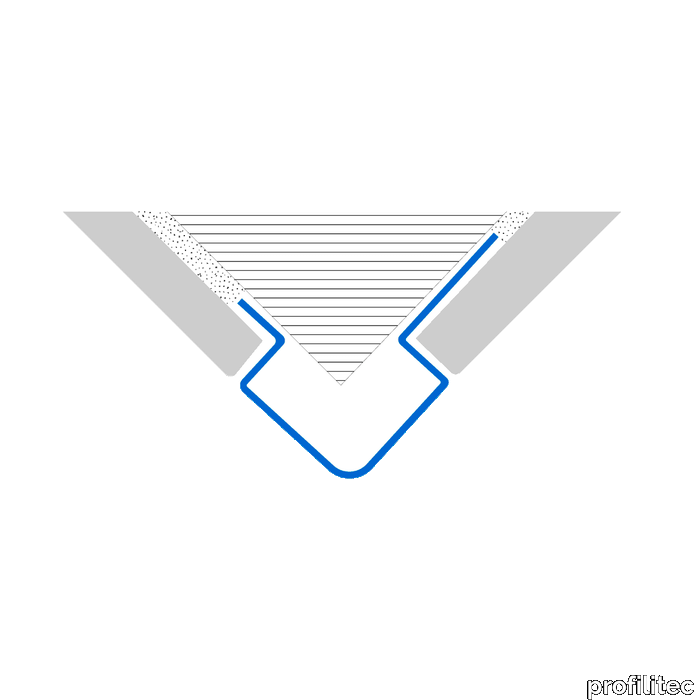

Tile corners: ROUNDCORNER RE trims ROUNDCORNER RE is a rounded corner profile conceived to protect exposed external tile corners. The profile is installed on site, laying the tile flush against the perforated flanges and creating a perfectly leveled corner. Typically used in heavy trafficked areas in public spaces such as hospitals, food processing plants and public bathrooms.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Roundcorner RE - Datasheet - Profilitec_Catalogue-page_Roundcorner-RE_NA.pdf
