TRIMTEC TR: the L transition trims - 2d files - 3d files

PRODUCT DESCRIPTION

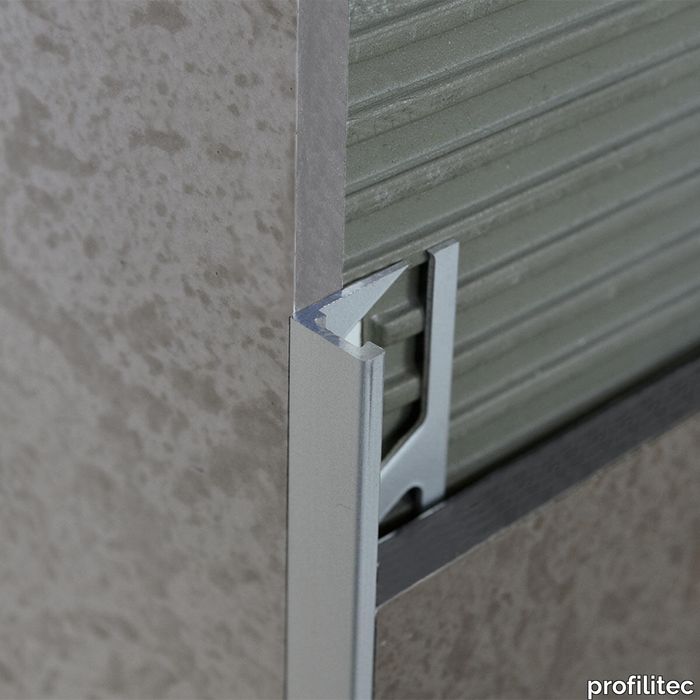

TRIMTEC TR: the L transition trims TRIMTEC TR is a complete range of brass, aluminium and stainless steel trim profiles designed for fast and efficient installation of any wall covering type, regardless of size and thickness. TRIMTEC TR is available in various heights from 2 to 30mm, matching different tile thicknesses. In the aluminium and brass versions, a dovetail groove maximizes the grout grip and edge protection for both vertical and horizontal tile laying. TRIMTEC TR profiles are conceived for tile laying, but can also be used with other types of wall covering such as stone, wood and industrial resin floors.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]
