SQUAREJOLLY SJM Square stair nosing trims for thin tiles - 2d files - 3d files

PRODUCT DESCRIPTION

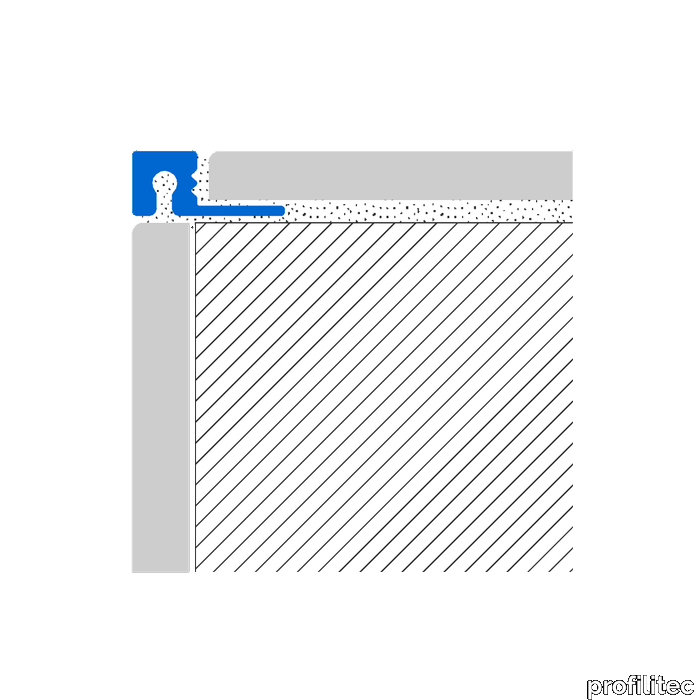

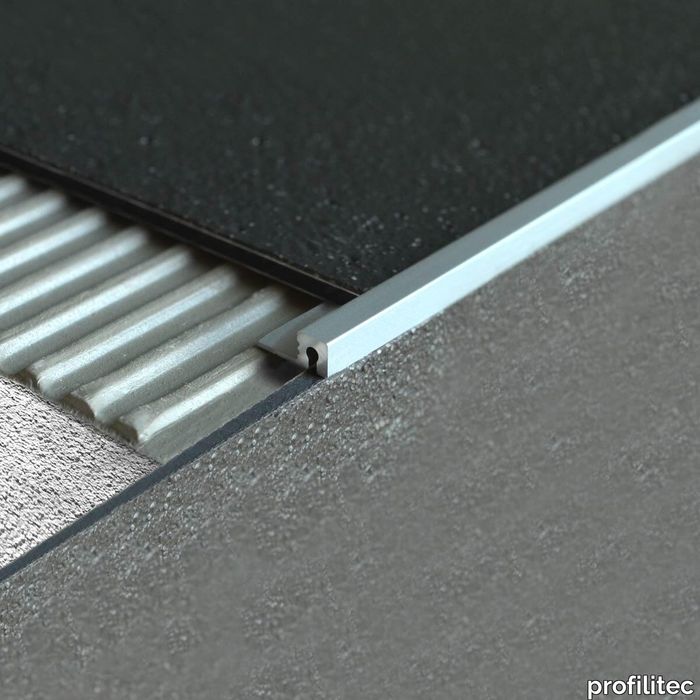

SQUAREJOLLY SJM Square stair nosing trims for thin tiles Technical and design profiles for finishing steps with "low" tiles thickness". In anodised aluminium. They perfect and protect the edge from impacts and mechanical impacts. With the use of SQUAREJOLLY SJM patented profile gives a square finish. Ideal for domestic and commercial applications.

SUPPLIER: PROFILITEC

TYPE: ACCESSORIES

HTTPS://US.PROFILITEC.COM

[email protected]

LIST OF FILES:

Roundjolly RJ + Squarejolly SJM - Datasheet - Profilitec_Catalogue-page_Roundjolly-RJ45-Squarejolly-SJM_NA.pdf
